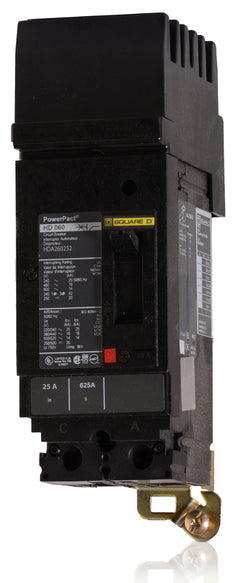

Square D HDA260201 Molded Case Circuit Breaker
- 20A
- 2 Pole
- I-Line
Square D
HDA260201
Molded Case Circuit Breaker
Brand
Square D
SKU
HDA260201
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDA260201 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT H-Frame series, this 2-pole 20A molded case circuit breaker is built for commercial and industrial power distribution. It features fixed long-time and instantaneous (LI) trip functions to handle overloads and short circuits. The unit mounts into Square D I-Line panelboards utilizing an AB phase connection. It serves as a modern upgrade for discontinued FA26020AB breakers. Rated for 14kAIC at 600VAC, the current-limiting design includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | HDA |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
9 answersWhat panels are compatible with the HDA260201?
This breaker is designed for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection that mounts directly onto the bus assembly.
What does the 1 at the end of the HDA260201 catalog number signify?
The 1 indicates an AB phase connection. This determines which two phases of the I-Line bus the 2-pole breaker will draw power from when installed.
What wire sizes are accepted by the load-side lugs on this breaker?
The standard mechanical lugs accept aluminum or copper wire ranging from 14 AWG to 3/0 AWG.
What does the HDA prefix mean in the Square D catalog number?
The H designates the PowerPacT H-frame family, D indicates the interrupting capacity tier, and A specifies the I-Line plug-in mounting style.
Is the HDA260201 rated for 100% continuous current?
No, this breaker has a standard 80% continuous current rating.
How does the I-Line mounting system work for this breaker?
The line side features plug-in jaws that snap directly onto the I-Line bus, while the load side uses standard mechanical lugs for wire termination. This allows for rapid installation and removal without disturbing adjacent breakers.
What type of trip unit is installed in this breaker?
It features a fixed thermal magnetic trip unit with Long-Time and Instantaneous protection functions. The trip settings are non-interchangeable and factory sealed.
Are the trip settings adjustable on the HDA260201?
No, this breaker features a fixed thermal magnetic trip unit. Both the Long-Time and Instantaneous trip functions are factory set and cannot be adjusted in the field.
Can this breaker be used in DC applications?
Yes, the HDA260201 is rated for up to 250VDC with an interrupting capacity of 20kA, making it suitable for specific direct current systems.
