Square D HDA260352 Molded Case Circuit Breaker
- 35A
- 2 Pole
- I-Line
Square D
HDA260352
Molded Case Circuit Breaker
Brand
Square D
SKU
HDA260352
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

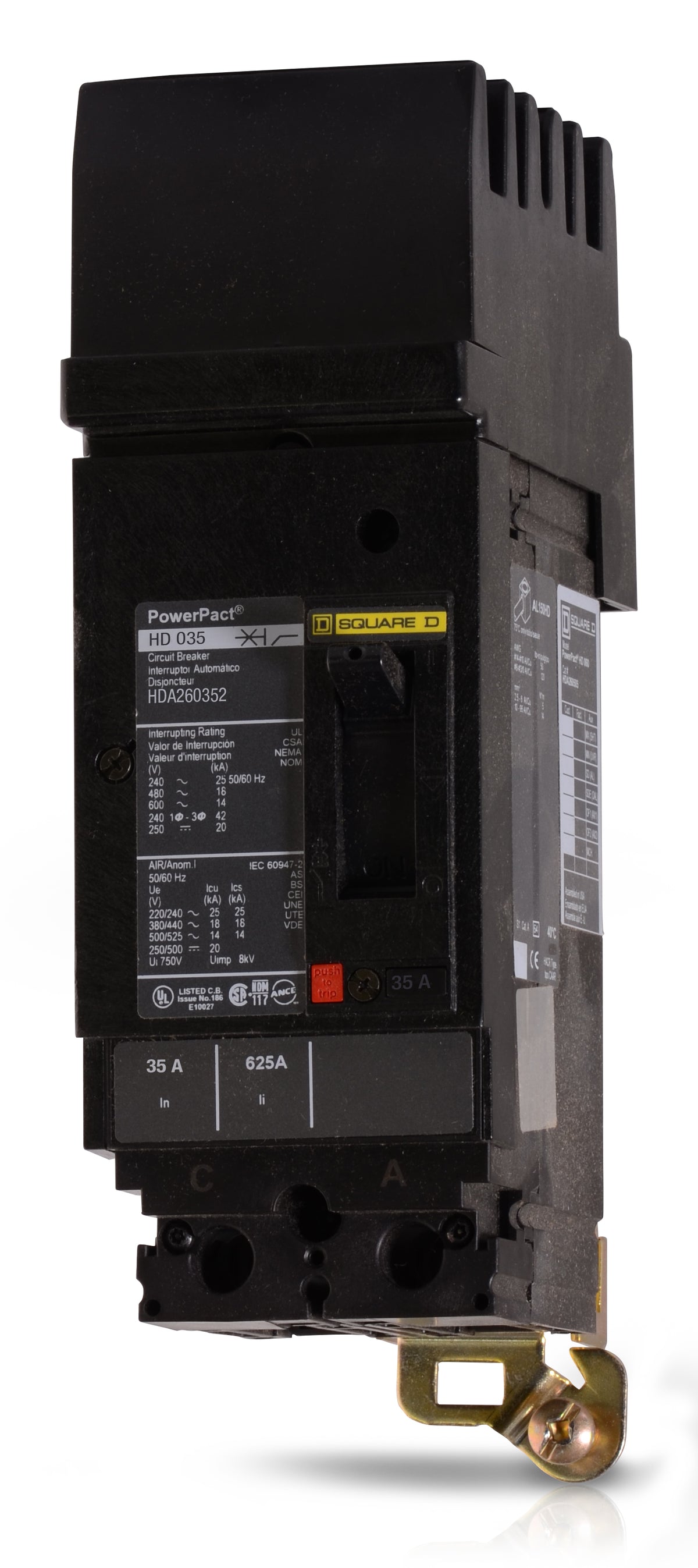

Square D HDA260352 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, this 35A H-Frame breaker offers fixed thermal and magnetic trip functions for precise circuit management. It fastens into Square D I-Line enclosures via a specialized AC phase connection. Facility managers can use this component to replace older FA26035AC units without modifying existing busbars. The breaker achieves a 25kAIC rating at 240VAC and features a current-limiting design to minimize potential fault damage.Specifications
| Brand | Square D |
|---|---|
| Part Number | HDA260352 |
| Series | HDA |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | I-Line Phase Connection AC |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the HDA260352 circuit breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It will not fit standard QO, NQ, or NF series panels.
How does the I-Line connection work on this breaker?
The HDA260352 features a plug-on design for the line side that connects directly to the I-Line bus, and mechanical lugs on the load side for wire terminations.
What phase connection does the HDA260352 use?
This specific 2-pole breaker is configured for an AC phase connection on the I-Line bus.
What does the D in the HDA frame type indicate?
In the Square D PowerPacT H-frame series, the D designates the interrupting rating tier, which provides 25kA at 240VAC, 18kA at 480VAC, and 14kA at 600VAC.
Is the HDA260352 rated for 80% or 100% continuous current?
This breaker has a standard 80% continuous current rating.
Can this PowerPacT H-frame breaker replace older Square D F-frame breakers?
Yes, the PowerPacT H-frame series is the direct replacement for legacy Square D F-frame breakers, such as the FA26035AC, in I-Line panelboards. It fits into the same bus space without requiring modifications.
Does this breaker include a push-to-trip feature?
Yes, all PowerPacT circuit breakers feature an integral push-to-trip button on the cover, allowing you to manually trip the breaker for testing and maintenance.
