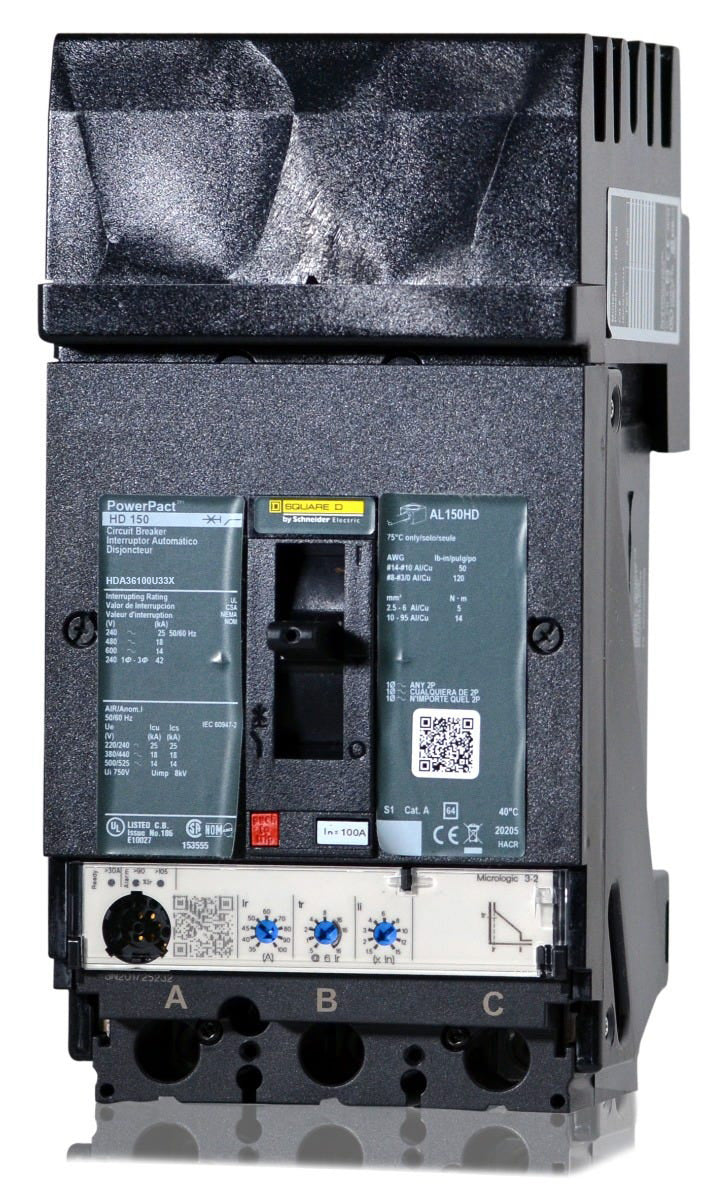

Square D HDA36100U33X - 100A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU HDA36100U33X
5.0
Rated 5.0 out of 5 stars
10 Reviews
Free Shipping Over $99

Square D HDA36100U33X - 100A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU HDA36100U33X
5.0
Rated 5.0 out of 5 stars
10 Reviews
Select Item Condition
Earn 1179 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D HDA36100U33X - 100A 3 Pole Molded Case Circuit Breaker

New

$1179.50 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Delivering advanced LSI protection, this 100A electronic trip molded case circuit breaker features a Micrologic 3.2 S trip unit. Built for commercial and industrial power distribution, it provides true RMS sensing. Designed for seamless integration, the HDA36100U33X mounts into Square D I-Line panelboards and switchboards. The plug-on connection ensures rapid installation. Rated 18kAIC at 480VAC, this 3-pole PowerPact H-Frame breaker offers adjustable trip settings.

Specifications

Brand Square D
Series HDA
Amperage 100A
Amperage Range 40-100A
Voltage 240VAC, 480VAC, 600VAC
Poles 3
Phase 3
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC
Mounting Style I-Line
Terminal Type Lugs
For Use With Square D I-Line Panelboards, Square D I-Line Switchboards
Trip Technology Electronic Trip
Trip Function Code LSI
Trip Function Long-Time, Short-Time, Instantaneous
Trip Adjustability Adjustable
Wire Gauge 14-3/0 AWG (Al/Cu)
Max Wire 3/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator
Accessories Lugs
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CCC, CE, CSA, IEC, NOM, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, Current Limiting, True RMS Sensing, Reverse Feed, 80% Rated, Visual Trip Indicator
