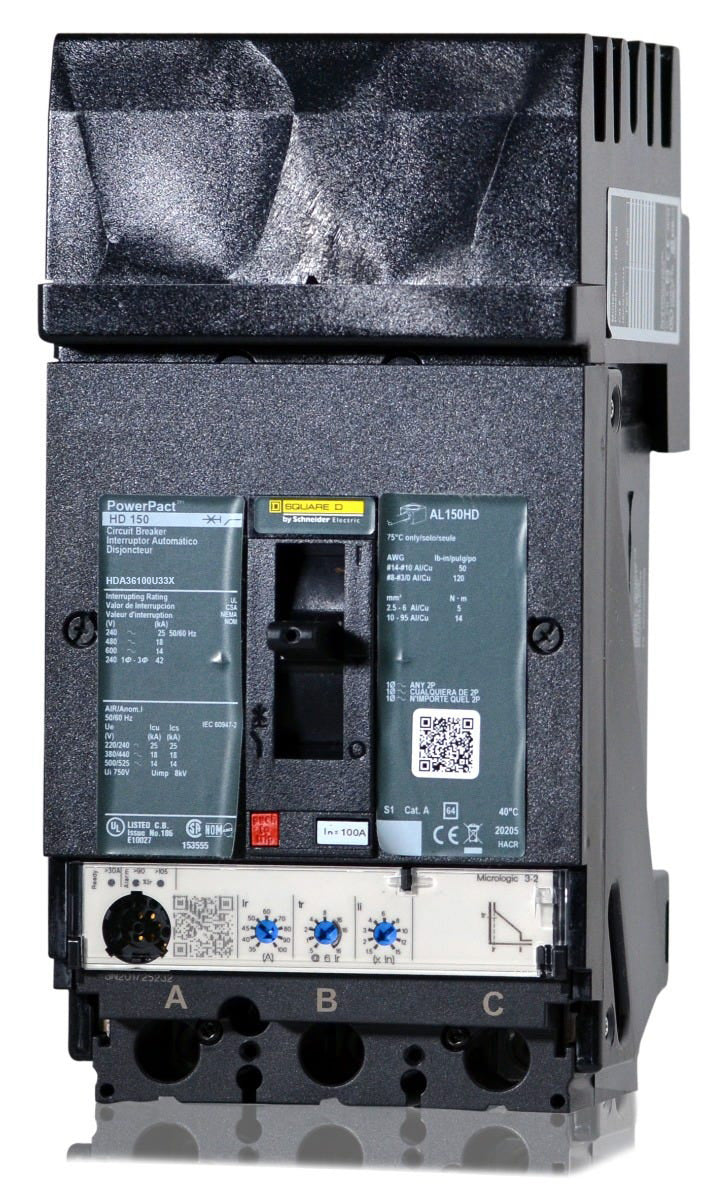

Square D HDA36100U33X Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
HDA36100U33X
Molded Case Circuit Breaker
Brand
Square D
SKU
HDA36100U33X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDA36100U33X - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Delivering advanced LSI protection, this 100A electronic trip molded case circuit breaker features a Micrologic 3.2 S trip unit. Built for commercial and industrial power distribution, it provides true RMS sensing. Designed for seamless integration, the HDA36100U33X mounts into Square D I-Line panelboards and switchboards. The plug-on connection ensures rapid installation. Rated 18kAIC at 480VAC, this 3-pole PowerPact H-Frame breaker offers adjustable trip settings.Specifications
| Brand | Square D |
|---|---|
| Series | HDA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Amperage Range | 40-100A |
|---|
| Frame Type | HDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, Reverse Feed, 80% Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat panelboards are compatible with the HDA36100U33X?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It mounts directly to the internal bus stack using plug-on jaws, saving installation time compared to traditional bolt-on breakers.
What does the U33X suffix mean on this PowerPact breaker?
The U33X suffix indicates that the breaker is equipped with a Micrologic 3.2S electronic trip unit. This solid-state unit provides adjustable Long-Time, Short-Time, and Instantaneous (LSI) protection, allowing for precise overcurrent coordination.
Does this breaker provide ground fault protection?
No. The Micrologic 3.2S trip unit provides LSI protection only. If your application requires ground fault protection, you will need a breaker with an LSIG trip unit.
How do you wire the line and load sides of this breaker?
The line side does not require wiring, as it uses I-Line plug-on jaws that connect directly to the panelboard bus. The load side features mechanical lugs that accept 14 to 3/0 AWG aluminum or copper conductors.
Is the HDA36100U33X rated for 100 percent continuous operation?
No, this is a standard-rated circuit breaker. Per National Electrical Code (NEC) guidelines, it is rated for 80 percent continuous load operation.
Can this 3-pole breaker be applied in a single-phase system?
Yes. Manufacturer specifications state that 3-pole PowerPact H-frame breakers with standard Micrologic trip units can be used for single-phase applications on 240VAC circuits by utilizing any two poles.
What is the phase configuration for this I-Line breaker?
This specific model is configured for a standard ABC phase connection on the I-Line busbar stack.
What is the maximum frame size for the PowerPact HDA series?
The PowerPact H-frame series has a maximum physical frame rating of 150 amps. This specific HDA36100U33X model is equipped with a 100-amp sensor and trip unit.
