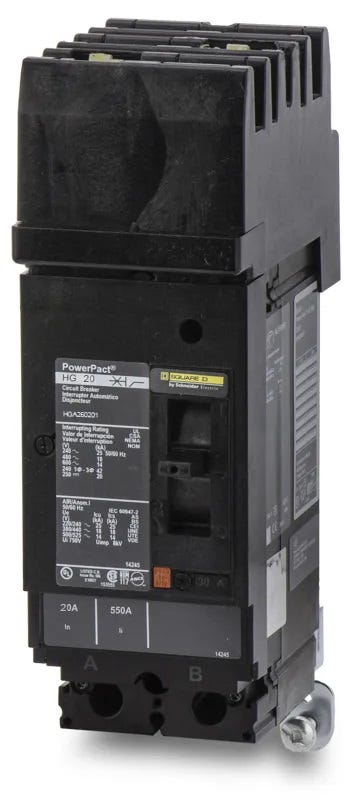

Square D HGA260201 Molded Case Circuit Breaker
- 20A
- 2 Pole
- I-Line
Square D
HGA260201
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA260201
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA260201 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
A drop-in solution for industrial facilities, the Square D HGA260201 is a 20A, 2-pole molded case circuit breaker. Part of the PowerPacT H-Frame family, it offers fixed thermal-magnetic LI protection for commercial applications. This unit mounts into Square D I-Line switchboards and panelboards via an AB phase connection. It seamlessly replaces discontinued FA26020AB and FH26020AB breakers. Rated 35kAIC at 480V, it features current-limiting technology and a Visi-Trip status indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA260201 |
| Series | HGA |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Visual Trip Indicator, Phase Connection AB |
Product FAQs
8 answersWhat panelboards are compatible with the HGA260201?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a plug-on line connection and will not fit standard QO, Homeline, or NQ panels.
Can the HGA260201 replace older FA or FH frame breakers?
Yes. The PowerPacT H-frame is the direct, modern replacement for obsolete 2-pole FA and FH frame I-Line breakers, such as the FA26020AB and FH26020AB.
What does the 1 at the end of the HGA260201 catalog number indicate?
The 1 indicates that this specific breaker is configured for an AB phase connection on the I-Line bus.
What are the wire size and torque specifications for the load lugs?
The standard AL150HD load lugs accept 14 AWG to 3/0 AWG aluminum or copper wire. Torque the lugs to 44.3 lb-in for 14 to 10 AWG wire, and 124 lb-in for 8 AWG to 3/0 AWG wire.
How is the HGA260201 installed in a panel?
It utilizes an I-Line plug-on connection. The line side plugs directly into the panelboard bus, while the load side uses mechanical lugs for wire termination.
Are the trip settings adjustable on this breaker?
No, this model features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions. It does not offer adjustable settings.
Does this breaker include a manual testing feature?
Yes, PowerPacT H-frame breakers feature an integral push-to-trip button on the cover, allowing you to manually trip the breaker to verify the mechanical operation of the tripping mechanism.
How does the breaker indicate a tripped condition?
When the breaker trips due to an overload or short circuit, the handle moves to a center position between ON and OFF, providing clear visual confirmation of the fault.
