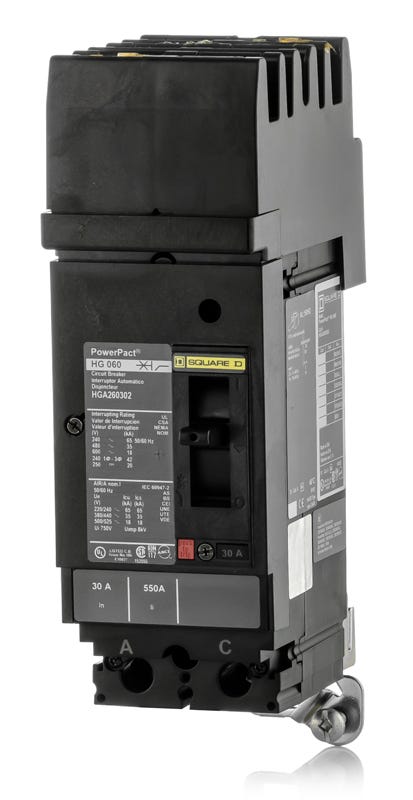

Square D HGA260302 Molded Case Circuit Breaker
- 30A
- 2 Pole
- I-Line
Square D
HGA260302
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA260302
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA260302 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGA260302 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated |
Quantity
Square D HGA260302 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated |
Similar Items
30A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D HGA260302 is a 30A, 2-pole PowerPacT H-Frame MCCB. It delivers dependable long-time and instantaneous overcurrent protection using fixed thermal-magnetic trip technology. This unit features an AC phase connection and an I-Line mounting bracket for seamless installation into Square D I-Line panelboards. It replaces older FA26030AC and FH26030AC catalog numbers. With a 35 kAIC rating at 480VAC, this breaker is HACR approved.Specifications
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated |
Product FAQs
9 answersWhat does the number 2 at the end of the HGA260302 catalog number indicate?
The number 2 indicates that this 2-pole breaker is factory-configured for an AC phase connection on the I-Line bus. It will connect to the A and C phases of the panelboard.
Which panelboards are compatible with the HGA260302?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a plug-on line side connection that mounts directly to the I-Line bus stack.
Can this 2-pole breaker be installed in a 3-phase I-Line panel?
Yes. Even though it is a 2-pole breaker, it can be installed in a 3-phase I-Line panelboard. Because it has an AC phase configuration, it will draw power specifically from the A and C phases of the bus.
How does the I-Line connection work on this breaker?
The breaker features a plug-on jaw connection on the line side that snaps directly onto the I-Line bus stack, while the load side uses standard mechanical lugs for wire termination.
Can I reverse feed the HGA260302 circuit breaker?
No. While many thermal-magnetic H-Frame breakers are suitable for reverse feeding, I-Line breakers like the HGA260302 cannot be reverse fed due to their plug-on jaw connection on the line side.
What does the letter G in the HGA260302 part number represent?
The letter G designates the interrupting rating level for this PowerPacT H-Frame breaker. It provides a maximum interrupting capacity of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC.
What wire sizes are accepted by the load lugs on this breaker?
The standard AL150HD load lugs accept aluminum or copper wire ranging from 14 AWG to 3/0 AWG.
What older Square D catalog numbers does the HGA260302 replace?
The PowerPacT H-Frame HGA260302 replaces legacy F-Frame I-Line breakers with AC phase connections, including the FA26030AC and FH26030AC.
Is the HGA260302 HACR rated?
Yes, this PowerPacT H-Frame circuit breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
