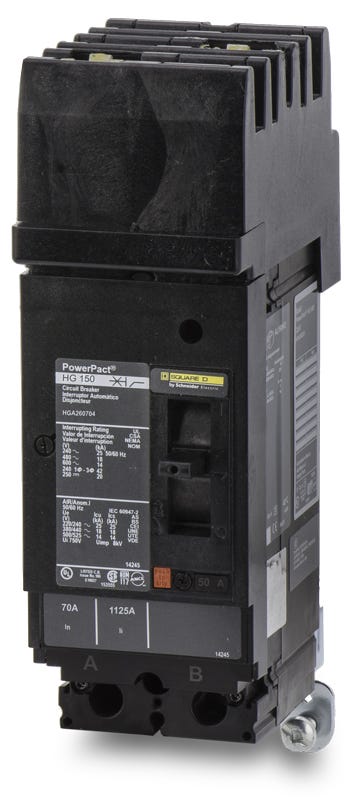

Square D 2 pole circuit breaker features a thermal magnetic molded case for extra protection. The circuit breaker has a current rating of 70 amps with a voltage rating of 600 v. It has an interrupt rating of 20 kA 500 V DC, 65 kA 240 V AC, 35 kA 480 V AC, 18 kA 600 V AC, 20 kA 250 V DC.
Specifications:
Manufacturer: Square D Cat. No: HGA260704 Alternate Part No: HGA260704 Product Type: Circuit Breaker Trip Unit Type: Thermal Magnetic Frame Type: H Frame Size: 150A/HG Frame: H Series: HG Type: HGA Phase: 1 Pole: 2 Voltage Rating: 600 V Amperage Rating: 70 A Connection: I-Line Style Plug-In Functions: Long Time and Instantaneous Interrupt Rating: 20 kA 500 V DC, 65 kA 240 V AC, 35 kA 480 V AC, 18 kA 600 V AC, 20 kA 250 V DC Size: 9.73 Inch H x 2.94 Inch W x 4.8 Inch D Wire Gauge: AWG 14, AWG 3/0 Aluminium/Copper Min. Wire Size: 14 AWG Max. Wire Size: 3 AWG Terminal Connection: Lug For Use With: I Line Panelboards Application: Reverse Fed Applications Ambient Air Temperature For Operation: 104 °F (40 °C) Electrical Connection: I-Line Connection Line, Lugs Load Mounting Mode: I-Line Approval: CSA, IEC, CE, UL Authentic Square D Product
Specifications
Brand
Square D
Series
HG
Amperage
70
Voltage
600
Poles
2
Phase
1
Mounting Type
I-Line
Approval
CSA, IEC, CE, UL
Interrupting Rating
20 kA 500 V DC, 65 kA 240 V AC, 35 kA 480 V AC, 18 kA 600 V AC, 20 kA 250 V DC
Frame Type
H
Connection Type
I-Line Style Plug-In
Protection
Thermal Magnetic
Functions
Long Time and Instantaneous
Terminal Connection
Lug
Length (in)
4.8
Width (in)
2.94
Height (in)
9.73
Wire Gauge
AWG 14, AWG 3/0 Aluminium/Copper
For Use With
I Line Panelboards
Temperature Rating
104 °F (40 °C)
Circuit Breaker Type
Standard
Actuator Type
Toggle
Max Wire Size
3 AWG
Min Wire Size
14 AWG
Mpn
HGA260704
Upc
785901600954
Gtin
785901600954
