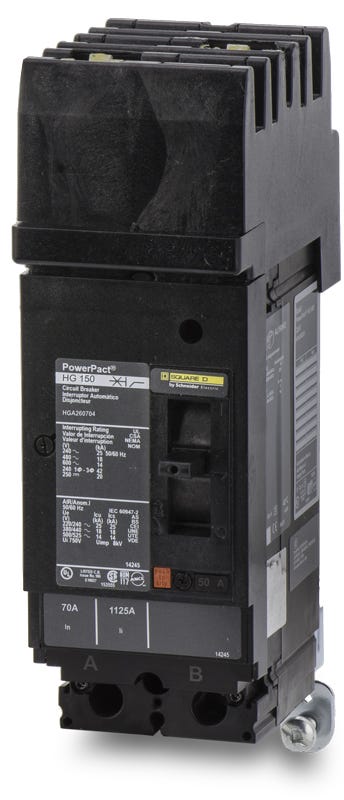

Square D HGA260704 Molded Case Circuit Breaker
- 70A
- 2 Pole
- I-Line
Square D
HGA260704
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA260704
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA260704 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty applications, this 70A PowerPact H-Frame MCCB delivers proven thermal-magnetic protection with a BC phase connection. The Square D HGA260704 carries a 600VAC rating and features a 35kA interrupting capacity at 480V. It easily mounts into standard I-Line panelboards and switchboards, utilizing a blow-on bus connection design for superior reliability. This current-limiting breaker acts as an exact replacement for discontinued FA26070BC and FH26070BC catalog numbers.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA260704 |
| Series | HGA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | I-Line Bracket (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
8 answersWhat older Square D circuit breakers does the HGA260704 replace?
This PowerPacT H-Frame breaker serves as a direct replacement for discontinued FA26070BC and FH26070BC I-Line circuit breakers.
What does the 4 at the end of the HGA260704 catalog number indicate?
The 4 suffix specifies that this 2-pole I-Line breaker is configured for a BC phase connection on the panelboard bus.
What type of panelboards will accept the HGA260704 circuit breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features a plug-on line connection that mounts directly to the I-Line bus.
How does the HGA260704 connect to the electrical system?
It uses an I-Line plug-on connection for the line side, which attaches directly to the panelboard bus. The load side features mechanical lugs for standard wire terminations.
Can I install this breaker in a standard QO or NQ panelboard?
No. The HGA260704 is an I-Line molded case circuit breaker. It is not compatible with QO load centers, NQ panelboards, or NF panelboards.
Is the HGA260704 rated for use in DC circuits?
Yes. In addition to its standard AC ratings, this breaker is rated for 20 kA interrupting capacity at both 250 V DC and 500 V DC.
What type of trip unit is installed in this breaker?
It features a fixed thermal-magnetic trip unit that provides long-time and instantaneous (LI) overcurrent protection. The thermal and magnetic trip points are non-adjustable.
What is the difference between the 70A rating and the 150A frame size?
The HGA260704 is built on the Square D PowerPacT H-Frame, which supports up to 150 amps. However, this specific breaker is factory-equipped with a 70-amp fixed trip unit, meaning it will trip if current exceeds 70 amps.
