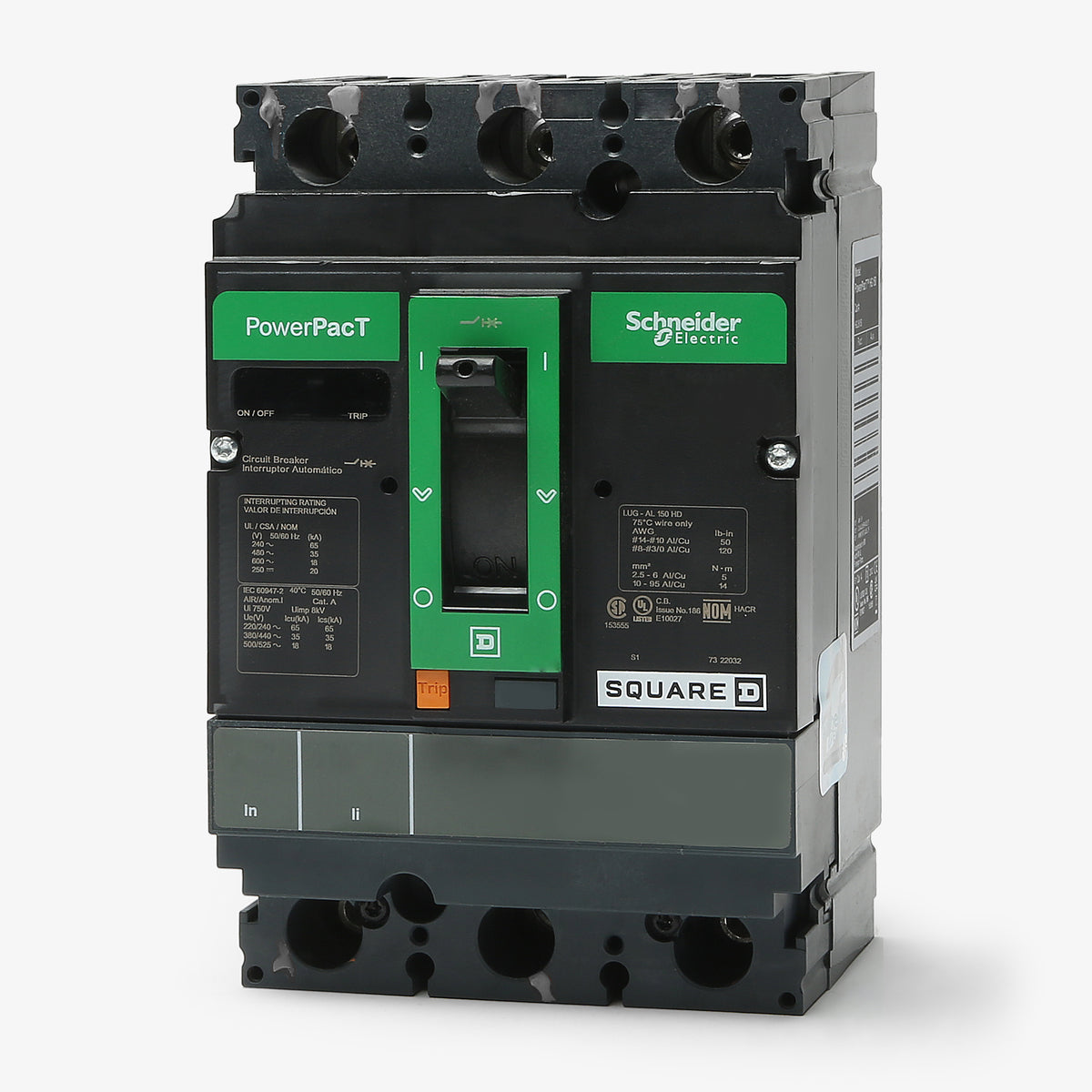

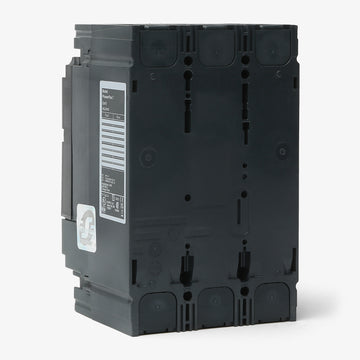

Square D HGL36025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Unit Mount
Square D
HGL36025
Molded Case Circuit Breaker
Brand
Square D
SKU
HGL36025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGL36025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGL36025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGL36025 |
| Series | HGL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards, PowerPacT H-Frame Enclosures, Motor Control Centers |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, 80% Rated |
Quantity
Square D HGL36025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HGL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards, PowerPacT H-Frame Enclosures, Motor Control Centers |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, 80% Rated |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT H-Frame lineup from Square D, the HGL36025 provides reliable overcurrent protection for commercial and industrial applications. This 3-pole, 25A MCCB is engineered for motor control centers and switchboards. Designed with a unit mount configuration, it integrates into compatible enclosures. It also serves as a drop-in replacement for legacy FAL36025 and FHL36025 breakers. Featuring thermal-magnetic LI trip technology, it is rated 65kAIC at 240V and includes Visi-Trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGL36025 |
| Series | HGL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Industrial Control Panels, Switchboards, PowerPacT H-Frame Enclosures, Motor Control Centers |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, 80% Rated |
Product FAQs

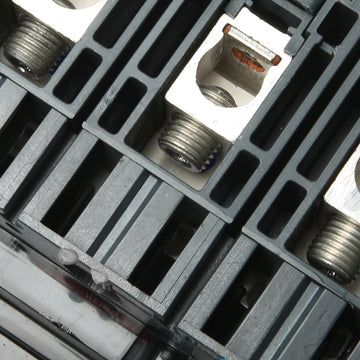

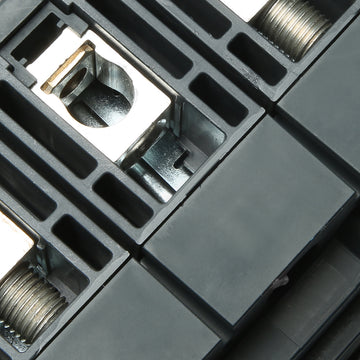

5 answersDoes the HGL36025 come with line and load lugs?
Yes, this unit mount breaker includes factory-installed line and load lugs that accept 14 to 3/0 AWG aluminum or copper wire.
Is the HGL36025 compatible with I-Line panelboards?
No, the HGL36025 is a unit mount breaker designed for feed-thru applications in control panels and switchboards. For I-Line panelboards, an I-Line specific variant like the HGA36025 is required.
Can the HGL36025 be used in DC electrical systems?
Yes, this thermal magnetic breaker is rated for DC applications, providing a 20kA interrupting capacity at both 250VDC and 500VDC.
What does the G in the HGL36025 catalog number indicate?
In the Square D PowerPacT nomenclature, the G designates the interrupting rating tier. It signifies that the breaker has a 35kA interrupting capacity at 480VAC.
Can I adjust the trip settings on the HGL36025?
No, this specific breaker features a fixed thermal and fixed magnetic trip unit. It does not have adjustable dials for the long-time or instantaneous trip functions.
