Square D HJL36080SA Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
Quantity

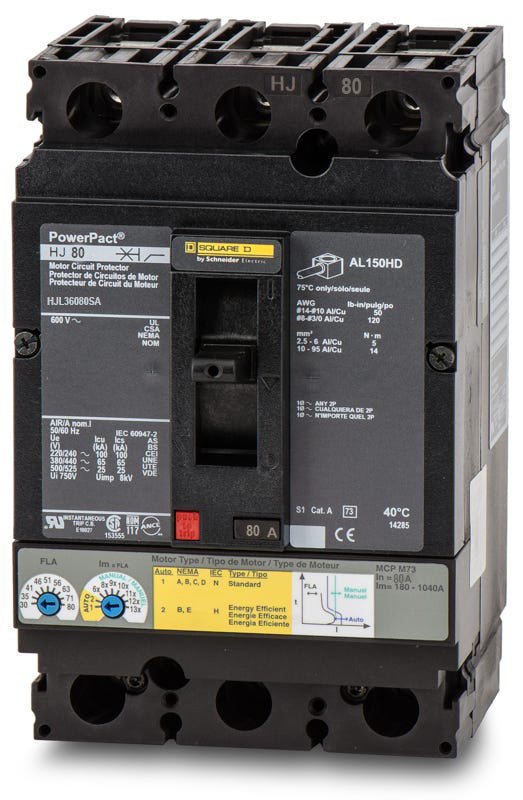

Square D HJL36080SA - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Belonging to the PowerPacT H-Frame series, the Square D HJL36080SA is a 3-pole, 80A molded case circuit breaker. It features fixed thermal-magnetic trip units providing essential LI protection. This unit mount breaker fits Square D industrial control panels, and serves as a main in NQ or NF panelboards. It also replaces legacy FAL36080 breakers when retrofitted. A factory-installed 120VAC shunt trip allows for remote operation. Rated at 65kAIC at 480VAC, it includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | HJL |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Control Panels, Switchboards, Enclosures, NQ Panelboards (as Main), NF Panelboards (as Main) |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Handle Tie |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Mercury Free, PVC Free, Visual Trip Indicator |
Product FAQs
8 answersWhat does the "SA" suffix mean in the HJL36080SA catalog number?
The "SA" suffix indicates this breaker includes a factory-installed 120VAC shunt trip, which allows for remote tripping of the circuit breaker.
What does the catalog number HJL36080SA indicate?
"H" stands for the PowerPacT H-Frame, "J" indicates the interrupting rating (65kA at 480VAC), "L" means it has lugs on both the line and load sides, "3" is for 3-pole, "6" is for the 600VAC voltage class, "080" is the 80-amp rating, and "SA" denotes the factory-installed 120VAC shunt trip.
What panels and enclosures are compatible with the HJL36080SA?
This unit-mount breaker is designed for use in Square D industrial control panels, switchboards, and enclosures. It can also be installed as a main breaker in NQ and NF panelboards.
Can the HJL36080SA replace older FAL series breakers?
Yes, PowerPacT H-frame breakers like the HJL36080SA are the modern replacements for legacy Square D FAL36080 breakers. Retrofitting may require different mounting hardware or space considerations due to updated frame dimensions.
How is the HJL36080SA mounted?
This is a unit-mount circuit breaker, meaning it is designed to be bolted directly to a panel backpan or enclosure rather than plugging onto a busbar like I-Line variants.
What wire sizes are accepted by the terminals on the HJL36080SA?
The factory-installed line and load lugs accept 14 AWG to 3/0 AWG aluminum or copper wire. Proper torque specifications must be followed during installation.
What type of trip unit does the HJL36080SA use?
It features a fixed thermal-magnetic trip unit that provides long-time (L) and instantaneous (I) overcurrent protection. The trip settings are non-interchangeable and factory-sealed.
Is the HJL36080SA suitable for reverse-feed applications?
Yes, standard thermal-magnetic PowerPacT H-frame breakers are suitable for reverse-feed applications and do not have line or load marking restrictions.
