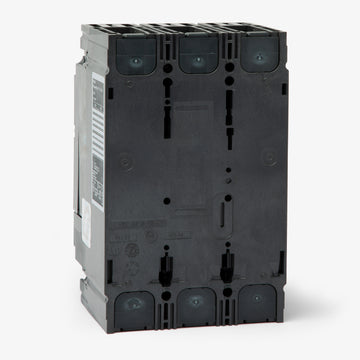

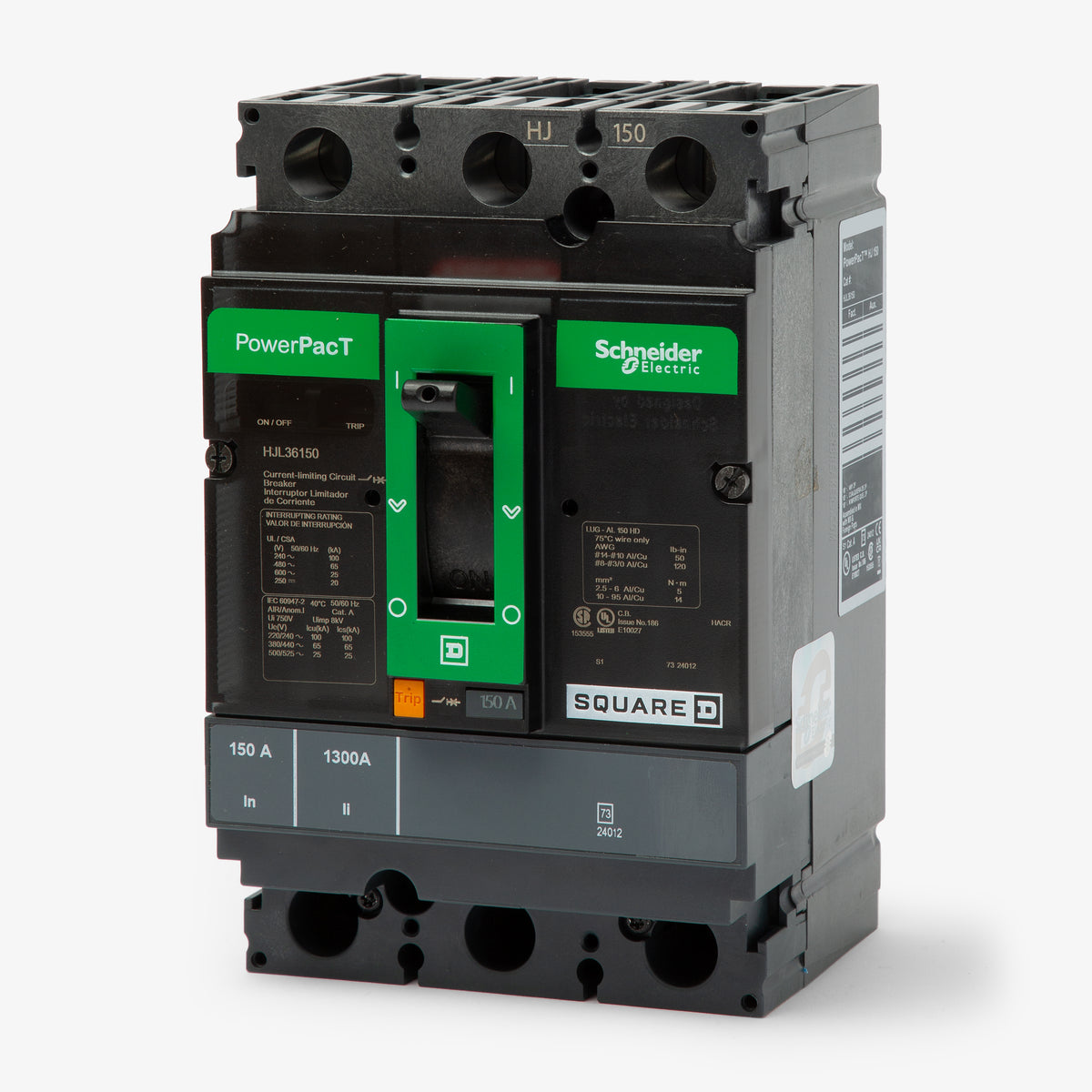

Square D HJL36150M74 Motor Circuit Protector
- 150A
- 3 Pole
- Unit Mount
Quantity
Square D HJL36150M74 - 150A 3 Pole Motor Circuit Protector
New
Quantity
Description
Engineered for demanding industrial environments, the HJL36150M74 is a 150A motor circuit protector from the Square D PowerPacT H-Frame series. It provides instantaneous short-circuit protection specifically tailored for motor branch circuits. This unit-mount breaker installs easily into industrial control panels and motor starters. Featuring an adjustable 348-1690A magnetic trip range, it allows precise coordination with motor overloads and delivers a robust 65kAIC rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Series | HJL |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC |
| Amperage Range | 348-1690A |
|---|
| Frame Type | HJL |
|---|---|

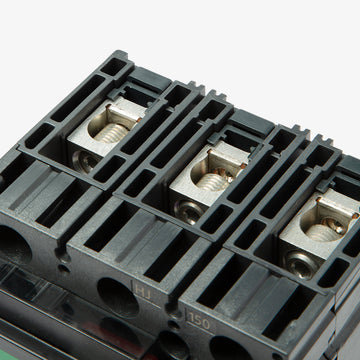

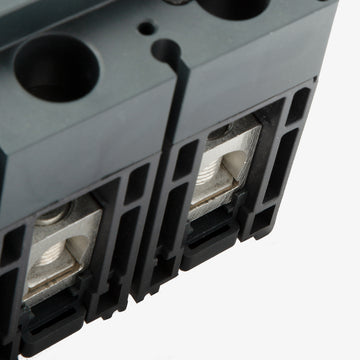

| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Motor Starters |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator |
|---|---|
| Accessories | None included (M74 suffix denotes 348-1690A Magnetic Trip Range) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
