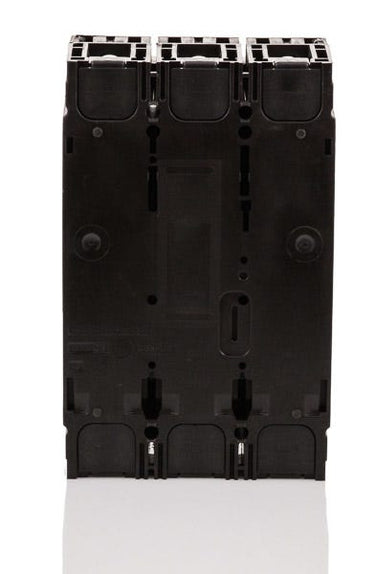

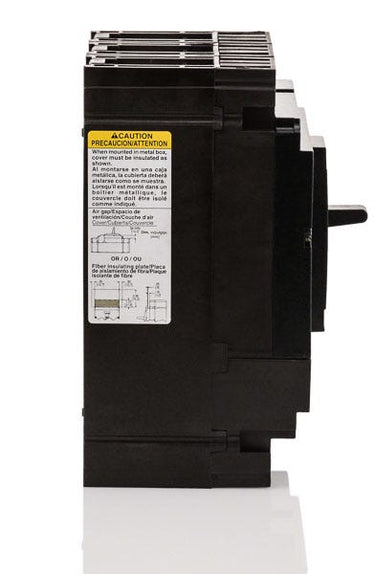

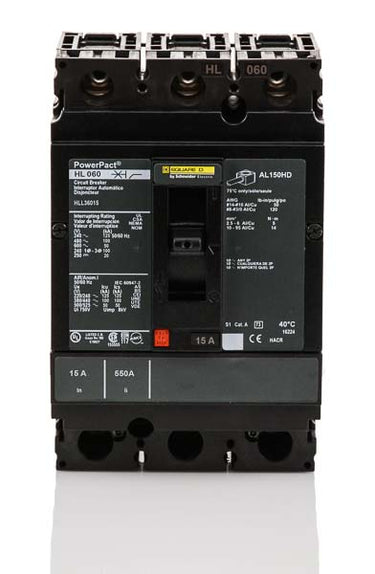

Square D HLL36015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Quantity
Square D HLL36015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HLL36015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HLL36015 |
| Series | HLL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, 80% Rated, Reverse Feed, Visual Trip Indicator, Trip-Free Mechanism |
Quantity
Square D HLL36015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HLL36015 |
| Series | HLL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, 80% Rated, Reverse Feed, Visual Trip Indicator, Trip-Free Mechanism |
Description
Operating as a modern solution for commercial switchboards, this 15A three-pole breaker provides precise long-time and instantaneous trip functions. It serves as an exact functional replacement for discontinued FCL36015 units, utilizing a standard unit-mount configuration with factory-installed lugs. The PowerPacT H-Frame architecture achieves a 100kAIC rating at 480VAC, offering superior current-limiting performance and visual trip indication for simplified facility maintenance.Specifications
| Brand | Square D |
|---|---|
| Part Number | HLL36015 |
| Series | HLL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Control Panels, Switchboards, Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, 80% Rated, Reverse Feed, Visual Trip Indicator, Trip-Free Mechanism |
Product FAQs
7 answersWhat type of mounting does the HLL36015 use?
The HLL36015 is a unit-mount circuit breaker. It uses lugs on both the line and load sides for cable connections and is not designed to plug directly onto an I-Line panelboard bus.
Can I install the HLL36015 in a Square D I-Line panelboard?
No, the HLL36015 is a unit-mount breaker. For an I-Line panelboard, you need the I-Line equivalent, which is catalog number HLA36015.
What are the lug torque requirements for the HLL36015?
For the standard AL150HD lugs, the tightening torque is 44 lbf-in (5 N.m) for 14 to 10 AWG wire, and 124 lbf-in (14 N.m) for 8 to 3/0 AWG wire.
What does the L in the HLL36015 part number indicate?
The L indicates the interrupting rating level. The HLL36015 has a very high interrupting capacity, rated up to 125kA at 240VAC and 100kA at 480VAC, which is significantly higher than standard D, G, or J rated H-Frame breakers.
Is the HLL36015 suitable for reverse-fed applications?
Yes, standard unit-mount PowerPacT H-Frame circuit breakers with factory-sealed thermal-magnetic trip units, like the HLL36015, can be reverse fed.
Is the HLL36015 rated for 100% continuous current?
No, the standard HLL36015 is an 80% rated circuit breaker. For a 100% rated application, you would need the HLL36015C variant.
How can I manually test the tripping mechanism on the HLL36015?
The breaker features an integral push-to-trip button on the front cover, allowing you to manually trip the circuit breaker for testing and maintenance.
