Square D HU361SS Safety Switch
Quantity
Core Specs
See full specs
Square D HU361SS Safety Switch
New
Quantity
Description

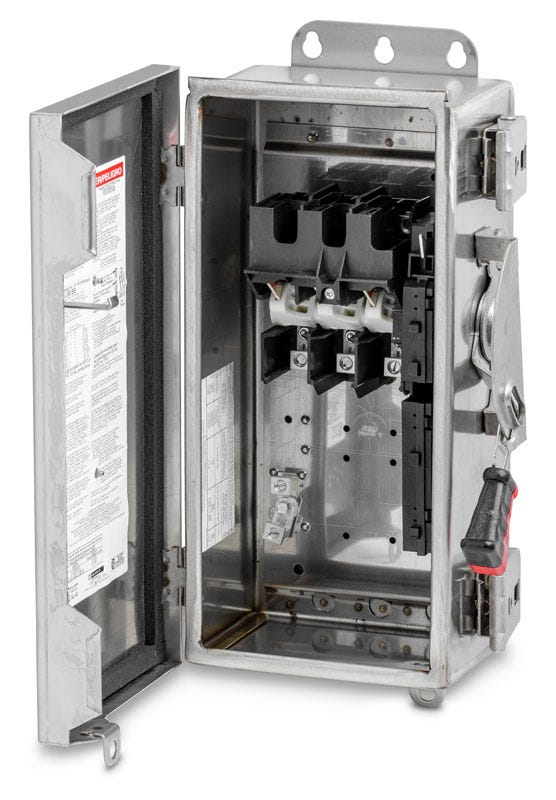

Square D HU361SS Safety Switch
The New Square D HU361SS Unfused 3-Pole Safety Switch 30A 600V is a heavy-duty safety switch from the Series F family of disconnect and safety switches. Featuring a 3-phase and 3-pole design, this non-fusible safety switch has a NEMA 3/3R/4/4X/5/12 rated 316 stainless steel enclosure. The enclosure is rainproof, dust tight and corrosion resistant, which makes it ideal for protection from a wide range of elements. Suitable for both indoor and outdoor use, this disconnect safety switch has an amperage rating of 30A and a voltage rating of 600V. It has an AIC rating of 200kA at 600V. Designed for efficient installation and optimal safety, this single throw safety switch is UL listed.
Specifications
| Amperage | 30 A |
|---|---|
| Voltage | 600 VAC |
| Poles | 3 |
| Series | HU |
| Phase | 3 |
|---|---|
| Interrupting Rating | 200kA |
| Voltage Protection Rating | 600V |
| Mounting Type | Surface |
|---|---|
| Terminal Connection | Lugs |
| Length (in) | 6 |
| Width (in) | 8.9 |
| Height (in) | 17.3 |
| Number Of Wires | 3 |
| Max Wire Size | 6 AWG (Cu) / 6 AWG (Al) |
| Min Wire Size | 14 AWG (Cu) / 12 AWG (Al) |
| Standards | UL Listed |
|---|---|
| Enclosure Material | 316 Stainless Steel |
| Brand | Square D |
|---|---|
| UPC | 785901637257 |
