Square D HU362DS Safety Switch
Quantity
Core Specs
See full specs
Square D HU362DS Safety Switch
New
Quantity
Description

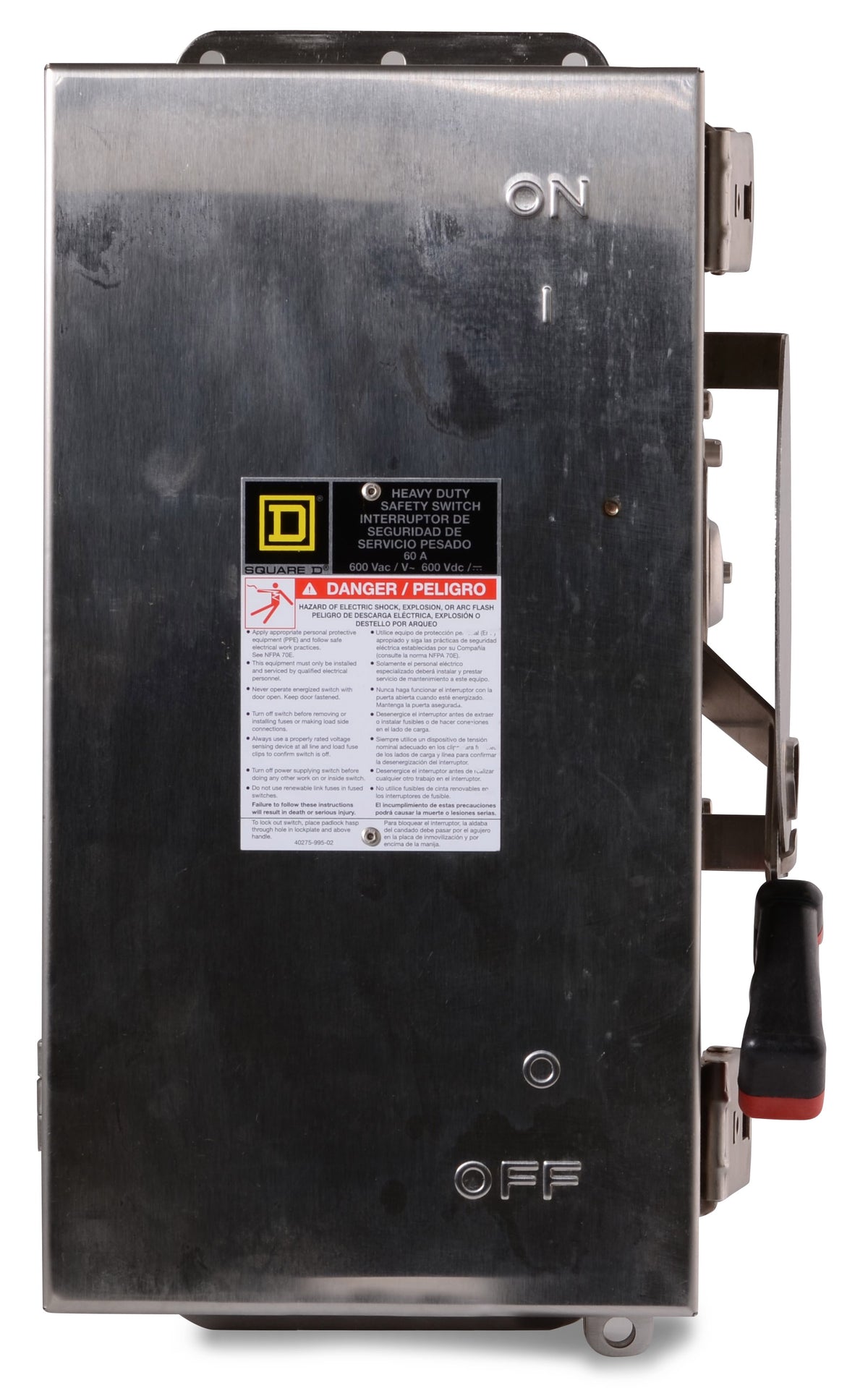

Square D HU362DS 3 Pole Safety Switch
The Square D HU362DS is a 3 Pole safety switch with a current rating of 60 Amps and a voltage rating of 600VAC/DC. It has an interrupting rating of 200kA@600V. The HU362DS has a surface mounting type and is used as a service equipment.
Specifications
| Duty Rating | Heavy Duty |
|---|---|
| Fusibility | Non-Fusible |
| Amperage | 60 A |
| Voltage | 600VAC/DC |
| Poles | 3 |
|---|---|
| Phase | 3 |
| Interrupting Rating | 200kA@600V |
| Mounting Type | Surface |
|---|---|
| Frame Type | HU |
| Wire Gauge | AWG 14 to AWG 3 Copper, AWG 12 to AWG 3 Aluminum |
| For Use With | Service Equipment |
| Configuration | Single |
| Number Of Wires | 3 |
| Approval | UL |
|---|---|
| NEMA Rating | 3, 3R, 4, 4X, 5, 12 |
| Standards | NEMA, RoHS |
| Body Material | Stainless Steel |
| Series | HU |
|---|---|
| Brand | Square D |
| MPN | HU362DS |
| GTIN | 785901023685 |
