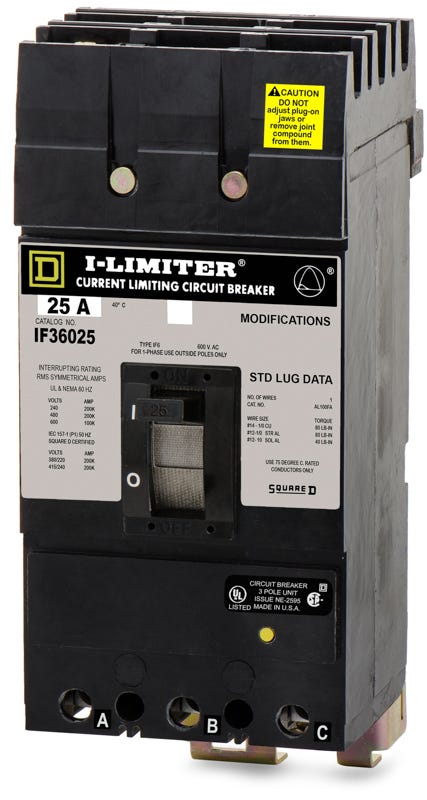

Square D IF36025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- I-Line
Square D
IF36025
Molded Case Circuit Breaker
Brand
Square D
SKU
IF36025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D IF36025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Part of the Square D I-Limiter series, the IF36025 is a 3-pole, 25A current-limiting molded case circuit breaker. It protects downstream equipment in commercial and industrial applications by restricting let-through energy. Featuring an I-Line plug-on connection, it installs quickly into compatible Square D panelboards. For modern upgrades, this IF-frame model is replaced by the PowerPact HRA36025. Rated for 200kAIC at 480V, it utilizes fixed thermal-magnetic trip technology.Specifications
| Brand | Square D |
|---|---|
| Part Number | IF36025-R |
| Series | IF |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip |
| Special Features | Current Limiting |
Product FAQs
5 answersWhat type of panels will the IF36025 fit?
It is designed specifically for Square D I-Line panelboards and switchboards. The breaker uses a plug-on I-Line connection for the line side and includes lugs for the load side.
What is the modern replacement for the IF36025 circuit breaker?
The IF-frame is a legacy model. For new installations or direct upgrades, the modern equivalent is the Square D PowerPact HRA36025, which matches the 25A capacity, I-Line mounting, and 200kAIC rating at 480VAC.
How does the I-Limiter feature on the IF36025 work?
As a current-limiting breaker, it clears high-level faults extremely fast, restricting the peak let-through current and energy. This provides enhanced protection for downstream circuits and allows it to be used in series-rated systems.
What wire sizes are compatible with the IF36025 load lugs?
The factory-installed lugs accept 14 AWG to 4 AWG copper wire, or 12 AWG to 4 AWG aluminum wire. Ensure proper torque specifications are followed during installation as labeled on the breaker.
Are the trip settings on the IF36025 adjustable?
No, this breaker utilizes a fixed thermal-magnetic trip unit. Both the Long-Time (thermal overload) and Instantaneous (magnetic short-circuit) trip functions are factory-set and non-adjustable.
