Square D IF36070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- I-Line
Square D
IF36070
Molded Case Circuit Breaker
Brand
Square D
SKU
IF36070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

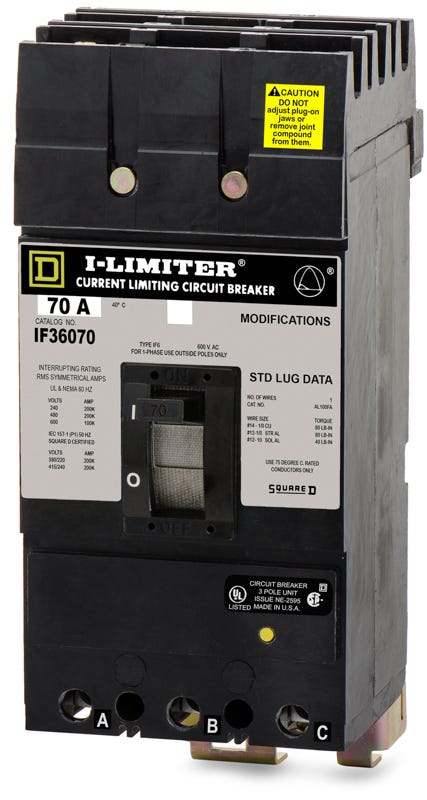

Square D IF36070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Part of the Square D I-Limiter family, the IF36070 3-pole, 70A MCCB is built for industrial environments. It provides thermal-magnetic protection with fixed LI trip functions. This unit installs into Square D I-Line panelboards using a plug-on connection. For modern upgrades, this legacy IF-frame is replaced by the HRA36070. Delivering 200kAIC at 480VAC, this current-limiting breaker actively restricts let-through energy during a fault to minimize stress on downstream components.Specifications
| Brand | Square D |
|---|---|
| Part Number | IF36070-R |
| Series | IF |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Product FAQs
4 answersWhat type of panelboards accept the IF36070 circuit breaker?
This breaker is designed specifically for Square D I-Line panelboards. It utilizes an I-Line plug-on connection that engages directly with the panelboard bus assembly.
What does the current-limiting feature of this breaker do?
As a current-limiting breaker, it actively restricts the peak let-through current and energy during a short circuit fault. This rapid clearing action minimizes thermal and mechanical stress on downstream electrical components.
What is the modern replacement for the legacy IF36070 breaker?
The IF-frame is a legacy Square D product. For modern upgrades or new installations requiring the same 70A capacity and 200kA at 480V interrupting rating, it is replaced by the PowerPact H-frame series, specifically catalog number HRA36070.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the IF36070 features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous functions. The trip settings cannot be adjusted in the field.
