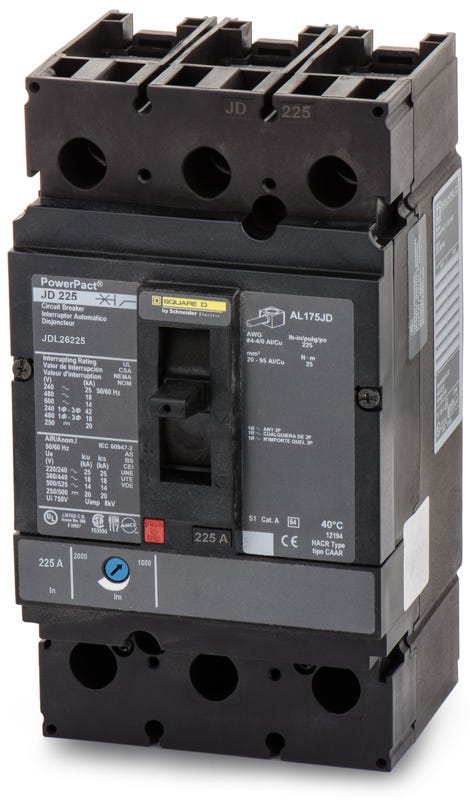

Square D JDL26225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Unit Mount
Square D
JDL26225
Molded Case Circuit Breaker
Brand
Square D
SKU
JDL26225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JDL26225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JDL26225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JDL26225 |
| Series | JDL |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 3/0 AWG-350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed |
Quantity
Square D JDL26225 - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | JDL |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 3/0 AWG-350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed |
Similar Items
200A 2 Pole Molded Case Circuit Breaker
2 Pole Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Part of the robust PowerPacT J-frame family, this 225A molded case breaker delivers reliable long-time and instantaneous (LI) protection for commercial and industrial facilities. It installs into Square D switchboards, motor control centers, and custom control panels using a standard unit-mount configuration.Specifications
| Brand | Square D |
|---|---|
| Part Number | JDL26225 |
| Series | JDL |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 3/0 AWG-350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersWhat type of panels or enclosures are compatible with the JDL26225?
This unit-mount PowerPacT J-frame breaker is designed for installation in Square D industrial enclosures, switchboards, motor control centers, and custom control panels.
Can the JDL26225 circuit breaker be reverse fed?
Yes. PowerPacT J-frame thermal-magnetic circuit breakers with factory-sealed trip units are UL listed for reverse-fed applications, allowing flexibility in panel wiring.
What wire sizes are accepted by the lugs on this breaker?
The factory-installed lugs on the JDL26225 accept 3/0 AWG to 350 kcmil aluminum or copper conductors.
What does the D stand for in the JDL26225 catalog number?
The D indicates the interrupting rating tier. In the PowerPacT J-frame series, a D rating provides an interrupting capacity of 18 kA at 480VAC and 25 kA at 240VAC.
What is the difference between the JDL26225 and the JGL26225?
Both are 225A, 2-pole PowerPacT J-frame breakers, but they feature different interrupting capacities. The JDL has a D rating for 18 kA at 480VAC, while the JGL features a higher G rating for 35 kA at 480VAC.
How does the LI trip unit function on this breaker?
The thermal-magnetic trip unit provides LI protection, which stands for Long-Time and Instantaneous. It uses a fixed thermal element to protect against sustained overloads and an adjustable magnetic element to clear short circuits.
