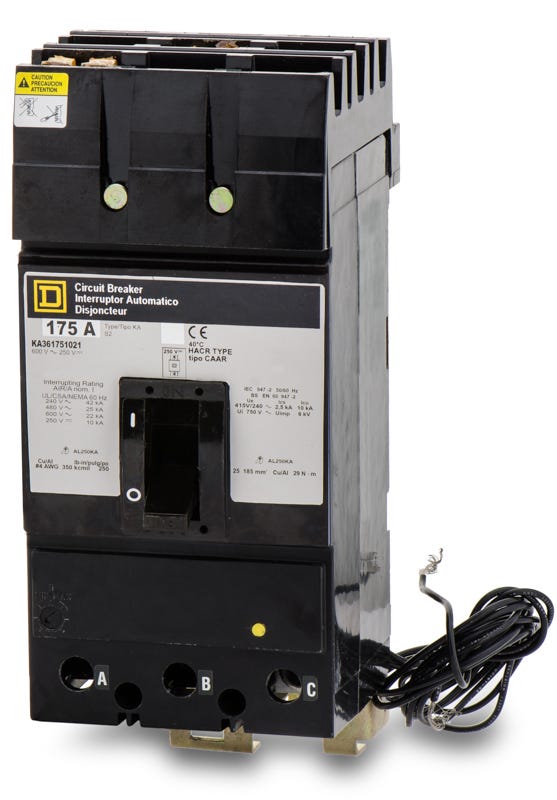

Square D KA36175-1021 Molded Case Circuit Breaker
- 175A
- 3 Pole
- I-Line
Quantity
Square D KA36175-1021 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Designed for advanced control, the Square D KA36175-1021 is a 175A, 3-pole molded case circuit breaker equipped with a 120-240VAC shunt trip. This integrated feature allows for remote tripping in emergency shutdown systems. It installs into Square D I-Line panelboards. As a legacy K-Frame component, it serves as a direct replacement for older installations, though new applications would use the JGA36175 with an added shunt trip accessory. It features a thermal-magnetic LI trip unit.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA36175-1021-R |
| Series | KA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
8 answersWhat does the -1021 suffix indicate on the KA36175-1021?
The -1021 suffix denotes a factory-installed 120/240VAC shunt trip. This internal accessory allows the breaker to be tripped remotely via a control voltage signal, which is commonly required for emergency shutdown systems or fire alarm interlocks.
Is the KA36175-1021 still manufactured, or is there a modern replacement?
The Square D KA series is a legacy K-Frame breaker. For new installations, the modern equivalent is the PowerPact J-Frame series, such as the JGA36175, which requires a separate shunt trip accessory. However, this KA breaker remains an exact drop-in replacement for existing K-Frame slots in older panelboards.
Can I field-install a shunt trip into a standard KA36175 breaker?
No. For legacy Square D K-Frame breakers, internal accessories like shunt trips are factory-installed. If your application requires remote tripping capabilities, you must source a breaker with the -1021 suffix rather than attempting to retrofit a standard unit.
How does the I-Line mounting system work for this breaker?
The I-Line mounting style utilizes a plug-in jaw connection that engages directly with the panelboard bus stack. This design allows for faster installation compared to bolt-on breakers and eliminates the need for separate bus connections or cabling.
What does the LI trip function code mean for the KA36175-1021?
The LI designation indicates a thermal-magnetic trip unit providing Long-Time (L) and Instantaneous (I) protection. The thermal element offers fixed protection against sustained overloads, while the magnetic element provides adjustable protection against short circuits.
Why is this thermal-magnetic breaker suitable for 250VDC applications?
Unlike electronic trip units that require alternating current to power their microprocessors, thermal-magnetic trip units use bimetallic strips and electromagnets that respond directly to current flow. This allows the KA36175-1021 to effectively protect DC circuits up to 250VDC with a 10kA interrupting capacity.
What wire sizes are accepted by the standard lugs on this K-Frame breaker?
The factory lugs on the KA36175-1021 accept aluminum or copper conductors ranging from 4 AWG to 350 kcmil, providing flexibility for various conduit and wire sizing requirements in 175A circuits.
What type of panelboard is required for the KA36175-1021?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It cannot be installed in standard load centers, NQ, or NF panelboards.
