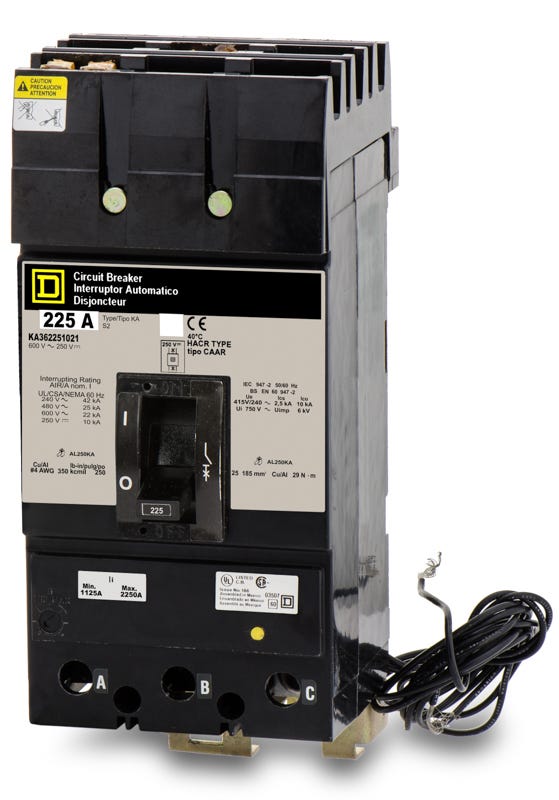

Square D KA36225-1021 Molded Case Circuit Breaker
- 225A
- 3 Pole
- I-Line
Quantity
Square D KA36225-1021 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D KA36225-1021 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | ka36225-1021-r |
| Series | KA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Quantity
Square D KA36225-1021 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | ka36225-1021-r |
| Series | KA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Description
Engineered for commercial applications, the KA36225-1021 provides reliable 3-pole, 225A overcurrent protection. It features thermal-magnetic trip technology with an adjustable magnetic setting and a factory-installed 120-240VAC shunt trip for remote operation. Designed to install into Square D I-Line panelboards, this legacy K-Frame breaker utilizes a plug-on mounting style. It is officially superseded by the JGA36225SA.Specifications
| Brand | Square D |
|---|---|
| Part Number | ka36225-1021-r |
| Series | KA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the -1021 suffix indicate on the KA36225-1021 breaker?
The -1021 suffix designates that this breaker is equipped with a factory-installed 120/240VAC shunt trip. This accessory allows the breaker to be opened remotely via an external control signal.
What is the modern replacement for the legacy KA36225-1021?
The KA36225-1021 is a legacy K-Frame breaker that has been superseded by the Square D PowerPact J-Frame series. The direct modern equivalent is the JGA36225SA, which maintains the I-Line mounting and includes the required shunt trip.
What type of enclosures or panels accept the KA36225-1021?
This breaker utilizes a plug-on I-Line mounting connection and is specifically designed for installation in Square D I-Line panelboards and switchboards. It is not compatible with standard bolt-on or load center enclosures.
What wire sizes are supported by the terminals on this breaker?
The load-side lugs on the KA36225-1021 accept either copper or aluminum conductors ranging from 4 AWG to 350 kcmil.
Can the trip settings be adjusted on the KA36225-1021?
Yes, this thermal-magnetic breaker features an adjustable magnetic trip for instantaneous short-circuit protection. The thermal element for long-time overload protection is fixed at 225 amps.
How does the integrated shunt trip improve system safety?
The factory-installed 120/240VAC shunt trip allows the breaker to be wired to external safety devices, such as emergency stop buttons or fire alarm relays. When the coil receives voltage, it automatically trips the breaker to disconnect power to the circuit.
