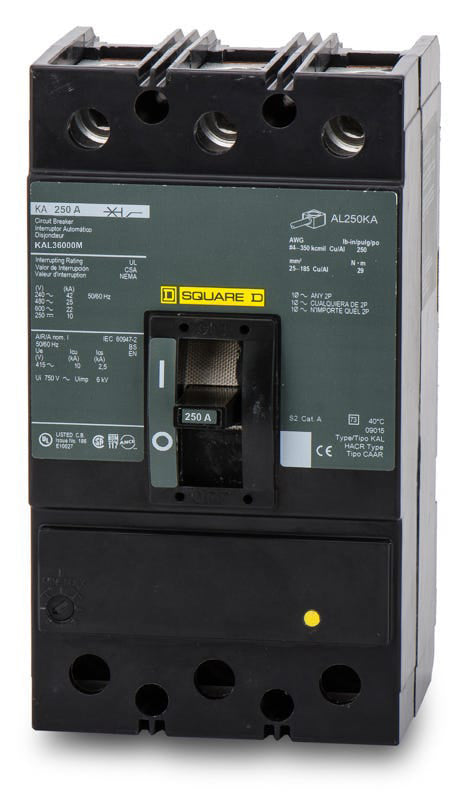

Square D KAL36000M - 250A 3 Pole Automatic Molded Case Switch

Brand Square D
SKU KAL36000M
5.0
Rated 5.0 out of 5 stars
3 Reviews
Free Shipping Over $99

Square D KAL36000M - 250A 3 Pole Automatic Molded Case Switch

Brand Square D
SKU KAL36000M
5.0
Rated 5.0 out of 5 stars
3 Reviews
Select Item Condition
Earn 3148 SuperPoints

Quantity

Reach out to verify stock
Inquire about this product
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D KAL36000M - 250A 3 Pole Automatic Molded Case Switch

New

$3148.61 Low stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for heavy-duty industrial applications, this 250A molded case switch provides reliable circuit isolation. It serves as a primary disconnect within motor control centers and facility switchboards. The unit-mount design installs into legacy Square D enclosures requiring K-frame dimensions. While replaced by the PowerPact J-Frame series, it remains essential for maintaining existing infrastructure. Featuring a Visi-Trip indicator, it handles up to 42kA fault currents at 240V.

Specifications

Brand Square D
Series KAL
Part Number KAL36000M
Amperage 250A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Square D Motor Control Centers, Switchboards
Trip Technology Magnetic Only
Trip Function Code I
Trip Function Instantaneous Only
Trip Adjustability Adjustable Magnetic
Wire Gauge 4 AWG - 350 kcmil (Al/Cu)
Max Wire 350 kcmil
Min Wire 4 AWG
Available Options Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release
Accessories Lugs (Line & Load Side)
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CE, CSA, IEC, UL
Temp Rating 40C
Construction Features Automatic Molded Case Switch, Visual Trip Indicator
