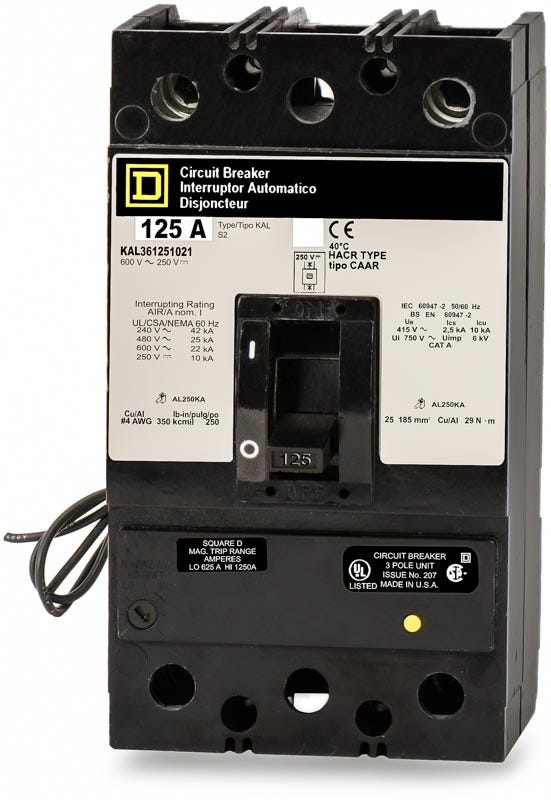

Square D KAL361251021 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Quantity
Square D KAL361251021 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D KAL361251021 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL361251021-R |
| Series | KAL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Square D KAL361251021 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL361251021-R |
| Series | KAL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Description
Built for heavy-duty applications, the KAL361251021 delivers 125 amps of protection within Square D's K-Frame architecture. This 3-pole unit-mount breaker is equipped with a factory-installed shunt trip for remote circuit interruption. It mounts seamlessly into compatible Square D motor control centers and enclosures. While succeeded by the PowerPacT HGL36125SA, it remains an essential exact-fit replacement for maintaining existing 600VAC infrastructure.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL361251021-R |
| Series | KAL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
4 answersWhat does the 1021 suffix indicate on the KAL361251021 breaker?
The 1021 suffix designates a factory-installed 120VAC shunt trip. This internal accessory allows the circuit breaker to be tripped remotely when a 120V control signal is applied to the coil leads, making it ideal for emergency stop circuits or automated safety shutdowns.
What is the modern replacement for the legacy Square D KAL361251021?
The legacy K-frame series has been superseded by the PowerPact H-frame. The HJL36125SA is a modern equivalent that matches the 125A rating, 3-pole configuration, and includes a factory-installed 120V shunt trip (indicated by the SA suffix). Verify your required interrupting capacity before substituting.
Can I install the KAL361251021 in a Square D I-Line panelboard?
No. This is a unit-mount breaker with a feed-thru connection, meaning it uses wire lugs on both the line and load sides. It is intended for use in standard Square D enclosures, switchboards, or motor control centers. For an I-Line panelboard, you would need an I-Line plug-on breaker.
Are the trip settings adjustable on the KAL361251021?
The thermal (long-time) protection is fixed at 125 amps. However, the magnetic (instantaneous) trip function is adjustable, allowing electricians to fine-tune the short-circuit response to coordinate with downstream devices or handle motor inrush currents.
