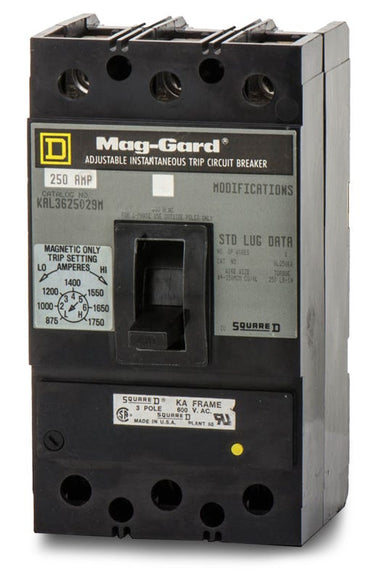

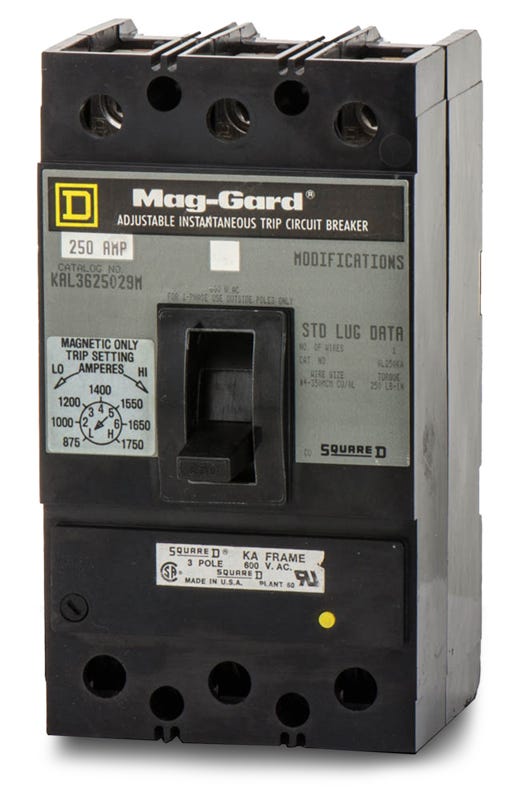

Square D KAL3625029M Motor Circuit Protector
- 250A
- 3 Pole
- Unit Mount
Square D
KAL3625029M
Motor Circuit Protector
Brand
Square D
SKU
KAL3625029M
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL3625029M - 250A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Sold out
Quantity
Square D KAL3625029M - 250A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL3625029M |
| Series | KAL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 875-1750A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
Quantity
Square D KAL3625029M - 250A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL3625029M-R |
| Series | KAL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 875-1750A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
Similar Items
250A 3 Pole Motor Circuit Protector
250A 3 Pole Motor Circuit Protector
250A 3 Pole Motor Circuit Protector
Description
Engineered for heavy-duty industrial environments, the Square D KAL3625029M is a 3-pole, 250A motor circuit protector. Featuring a magnetic-only trip unit adjustable from 875A to 1750A, it provides critical instantaneous short-circuit defense while allowing normal motor inrush currents. This K-Frame unit mounts into legacy Square D motor control centers and combination starters. Rated at 25kAIC at 480VAC, it is officially replaced by the modern PowerPacT J-Frame JJL36250M75.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL3625029M-R |
| Series | KAL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 875-1750A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
