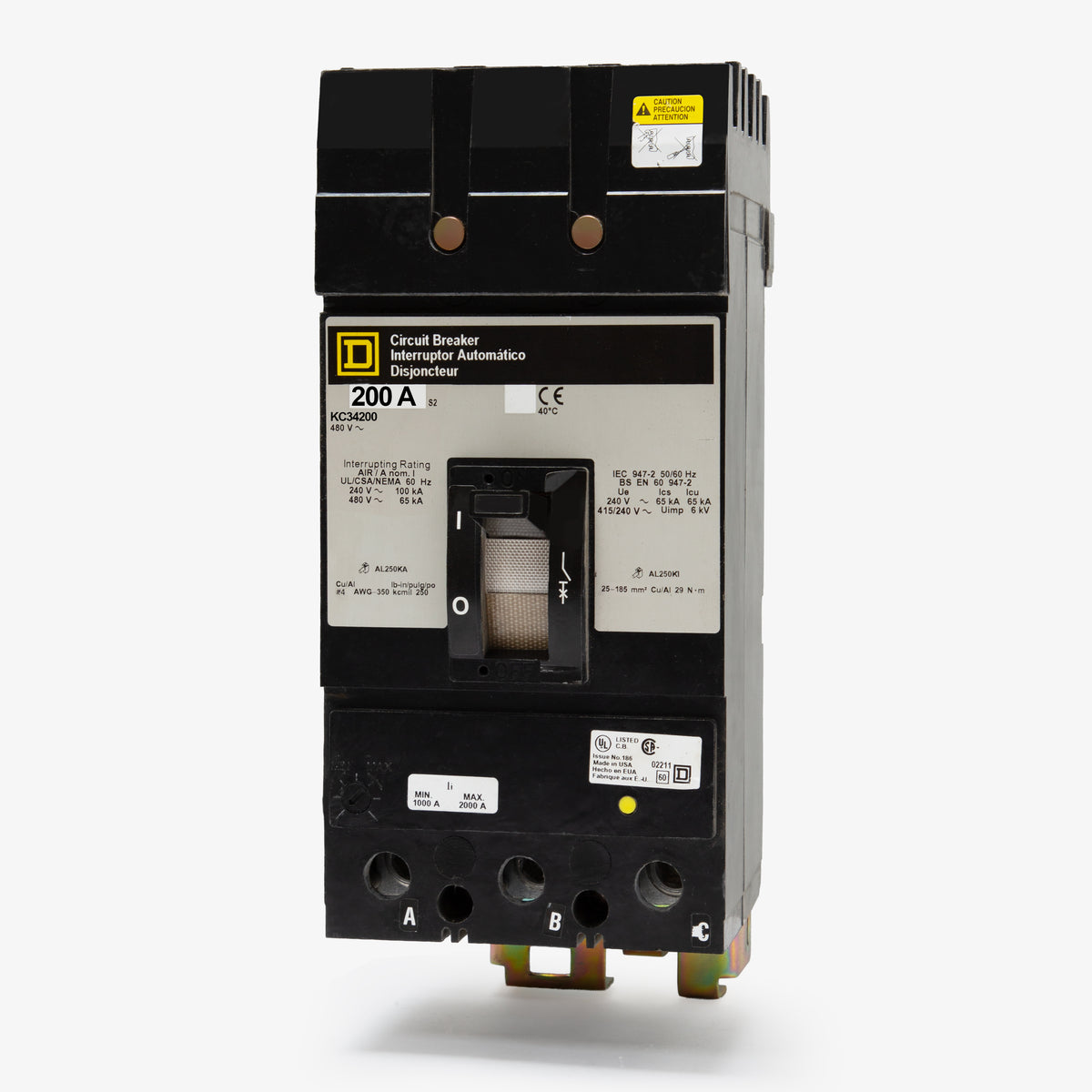

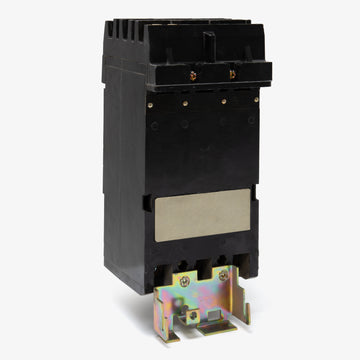

Square D KC34200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Square D
KC34200
Molded Case Circuit Breaker
Brand
Square D
SKU
KC34200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KC34200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D KC34200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KC34200 |
| Series | KC |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | KC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs (AL250KA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Extra High Interrupting Capacity |
Quantity
Square D KC34200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KC34200-R |
| Series | KC |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | KC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs (AL250KA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Extra High Interrupting Capacity |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, this 3-pole, 200A molded case circuit breaker utilizes proven thermal-magnetic trip technology. It delivers reliable long-time and instantaneous protection for heavy-duty circuits. The plug-on design allows it to mount securely into Square D I-Line panelboards. For facilities upgrading their systems, this legacy K-Frame breaker crosses over to the modern PowerPact JJA36200 series. It features a 65kAIC interrupting capacity at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | KC34200-R |
| Series | KC |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | KC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs (AL250KA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat type of panelboards accept the KC34200?

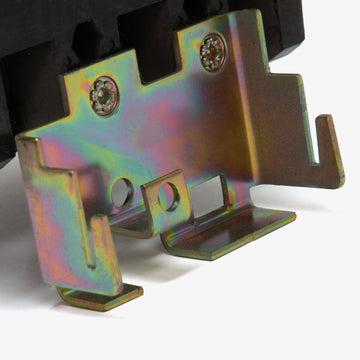

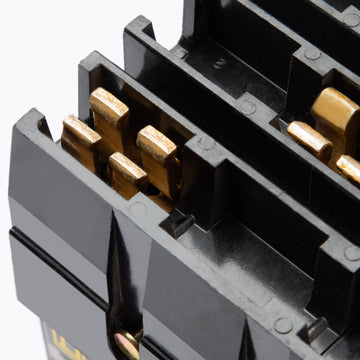

This circuit breaker features an I-Line plug-on connection and is exclusively compatible with Square D I-Line panelboards and switchboards. It will not fit in standard load centers or bolt-on panel configurations.
What wire gauges are supported by the standard KC34200 lugs?
The standard mechanical lugs on this breaker accommodate wire sizes ranging from 4 AWG up to 350 kcmil.
Is the trip unit on the KC34200 adjustable?
Yes, while the thermal element for long-time overload protection is fixed at 200A, the magnetic (instantaneous) trip function features an adjustable dial to help coordinate with downstream devices and specific inrush current requirements.
Is the legacy K-Frame KC34200 still manufactured?
No, the original Square D K-Frame series is officially obsolete. Supplying these legacy frames allows facilities to replace failed breakers without undergoing costly panel retrofits.
What is the current PowerPact replacement for the KC34200?
For facilities upgrading their distribution equipment, the legacy KC34200 crosses over to the modern Square D PowerPact J-Frame series, specifically catalog number JJA36200. This modern equivalent matches the 200A rating, 3-pole I-Line configuration, and 65kAIC at 480VAC interrupting capacity.
Does the KC34200 support DC voltage applications?
Yes. Alongside its standard alternating current ratings, this breaker is certified for direct current systems up to 250VDC, where it provides a 10kA interrupting rating.
