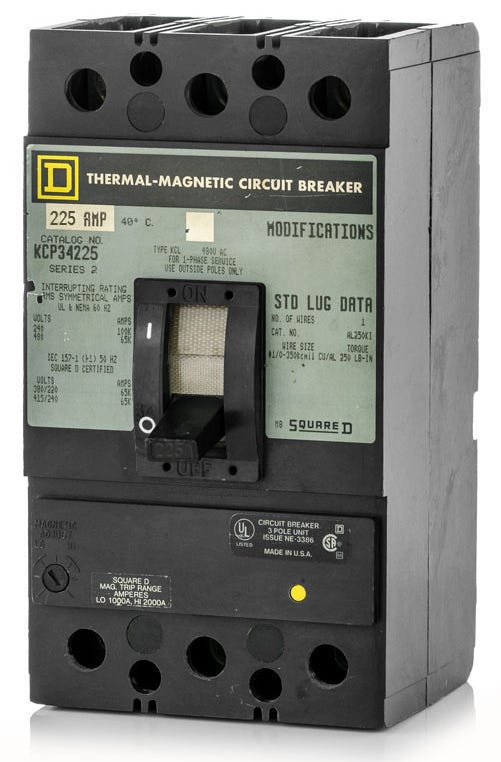

Square D KCP34225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
Square D
KCP34225
Molded Case Circuit Breaker
Brand
Square D
SKU
KCP34225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KCP34225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
225A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Square D KCP34225 delivers 225 amps of continuous current handling across three poles. It utilizes proven thermal-magnetic trip technology to ensure precise LI protection. Designed specifically for I-Line panelboards, this bolt-on breaker ensures a secure connection within commercial switchgear. The breaker boasts an extra high interrupting capacity of 65kA at 480V, making it suitable for high-fault environments. It is also fully HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | KCP34225 |
| Series | KCP |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |
| Frame Type | KCL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40°C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the KCP34225?
This legacy K-Frame breaker is designed for use with Square D I-Line panelboards. It utilizes a bolt-on connection rather than a plug-on design.
What are the wire size requirements for the KCP34225 lugs?
The standard lugs on this breaker accept either aluminum or copper (Al/Cu) conductors, accommodating wire gauges from 4 AWG up to 350 kcmil.
What do the LI trip function and adjustable magnetic settings mean on the KCP34225?
The LI designation means this thermal-magnetic breaker provides Long-Time (L) and Instantaneous (I) protection. It features a fixed thermal element for standard overload protection and an adjustable magnetic element, allowing installers to fine-tune the short-circuit trip threshold.
Is the KCP34225 suitable for high-fault commercial applications?
Yes, it is built for heavy-duty power distribution with an extra-high interrupting capacity. It can safely interrupt up to 65kA at 480VAC and 100kA at 240VAC.
What frame size does the KCP34225 belong to?
It is part of the legacy Square D K-Frame family, specifically designated as a KCL frame molded case circuit breaker.
Can this 3-pole breaker be applied on 277V systems?
Yes, while it has a maximum voltage rating of 480VAC, it is fully compatible with 240V, 277V, and 480V AC electrical systems.
