Square D KH26200AB Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Square D
KH26200AB
Molded Case Circuit Breaker
Brand
Square D
SKU
KH26200AB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

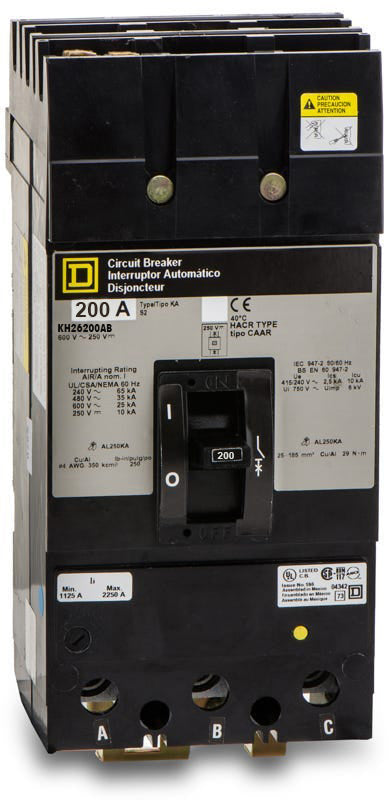

Square D KH26200AB - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
225A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
Belonging to the legacy K-Frame family, this 200A MCCB provides thermal-magnetic protection for industrial applications. It features an A-B phase connection specific to its catalog configuration. The unit installs into Square D I-Line panelboards and switchboards. For modern facility upgrades, this configuration is replaced by the PowerPact JGA262001. Rated for 65kA interrupting capacity at 240V, it handles demanding fault currents while maintaining HACR certification for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | KH26200AB-R |
| Series | KH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat does the AB suffix indicate on the KH26200AB catalog number?
The AB suffix specifies the phase connection. It dictates that the line-side plug-on jaws are physically configured to connect exclusively to the A and B phases on the I-Line bus.
What is the modern replacement for the legacy KH26200AB?
The KH26200AB is a legacy K-Frame breaker. For current generation hardware upgrades, Square D replaces this exact configuration with the PowerPact J-Frame series, specifically catalog number JGA262001.
How does the I-Line mounting system work on this breaker?
The I-Line design uses a plug-on jaw mechanism on the line side that snaps directly onto the panelboard bus assembly. The load side utilizes standard mechanical lugs for wire termination, eliminating the need for line-side cabling.
What wire sizes and materials are compatible with the load lugs?
The factory-installed load lugs accept either aluminum or copper conductors ranging from 4 AWG to 350 kcmil.
Are the trip settings adjustable on the KH26200AB?
The thermal element for long-time overload protection is fixed, but the magnetic instantaneous trip function is adjustable to coordinate with specific fault current requirements.
Is the KH26200AB suitable for use with HVAC equipment?
Yes, this breaker carries an HACR rating, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
