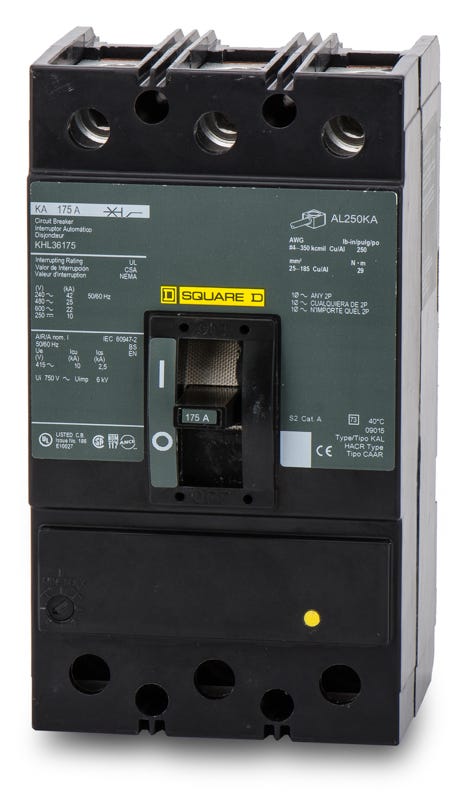

Square D KHL36175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Square D
KHL36175
Molded Case Circuit Breaker
Brand
Square D
SKU
KHL36175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KHL36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KHL36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KHL36175 |
| Series | KHL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated |
Quantity
Square D KHL36175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KHL36175-R |
| Series | KHL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial use, the Square D KHL36175 is a 175A, 3-pole molded case circuit breaker. It provides reliable protection for switchboards and motor control centers. This unit-mount breaker belongs to the legacy K-Frame family. For modern upgrades, it transitions to the PowerPact J-Frame JGL36175. Rated 65kA at 240VAC, it features a thermal-magnetic trip unit with adjustable magnetic settings (LI). It is HACR rated and includes standard lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | KHL36175 |
| Series | KHL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated |
Product FAQs
5 answersIs the KHL36175 still manufactured by Square D?
The KHL series is a legacy K-frame molded case circuit breaker. For modern upgrades or new installations, Schneider Electric recommends the PowerPact J-frame series, such as the JGL36175, which requires a frame retrofit.
What equipment is the KHL36175 designed to fit?
This unit-mount breaker is designed for use in compatible Square D enclosures, switchboards, and motor control centers. It features a feed-thru connection and is not compatible with I-Line plug-on panelboards.
What wire sizes are accepted by the lugs on the KHL36175?
The factory-installed lugs accept 4 AWG to 350 kcmil aluminum or copper wire. Ensure proper torque specifications are followed during installation.
How does the trip unit function on this breaker?
It utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection. The thermal element is fixed, while the magnetic trip is adjustable to allow fine-tuning of the instantaneous response.
Can the KHL36175 be used in DC power systems?
Yes, this breaker is rated for up to 250VDC with an interrupting capacity of 10kA, making it suitable for specific direct current applications alongside standard AC systems.
