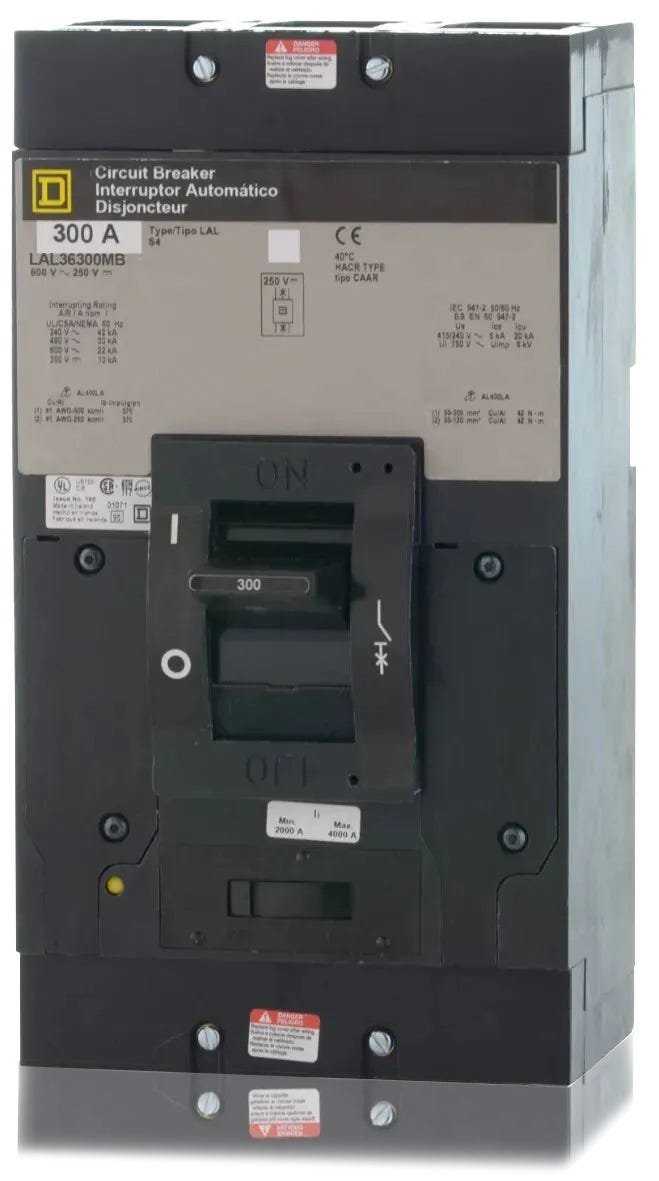

Square D LAL36300MB Molded Case Circuit Breaker
- 300A
- 3 Pole
- Unit Mount
Square D
LAL36300MB
Molded Case Circuit Breaker
Brand
Square D
SKU
LAL36300MB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LAL36300MB - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LAL36300MB - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAL36300MB |
| Series | LAL |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Panelboards, Switchboards (Restricted Depth Enclosures) |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Short Handle |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Square D LAL36300MB - 300A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | LAL |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Panelboards, Switchboards (Restricted Depth Enclosures) |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Short Handle |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
350A 3 Pole Molded Case Circuit Breaker
350A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Engineered for space-constrained applications, the Square D LAL36300MB is a 3-pole, 300A molded case circuit breaker. The "MB" suffix designates a short handle configuration, making it ideal for shallow equipment profiles. This unit mount breaker installs into Square D panelboards and switchboards with restricted depth requirements. When upgrading, it is replaced by the LJL36300, though handle clearance must be verified.Specifications
| Brand | Square D |
|---|---|
| Part Number | LAL36300MB |
| Series | LAL |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Panelboards, Switchboards (Restricted Depth Enclosures) |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Short Handle |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat does the "MB" suffix indicate on the LAL36300MB circuit breaker?
The "MB" suffix designates a short handle configuration. This is engineered for restricted depth enclosures, allowing panel doors to close securely without interference from the breaker handle.
What is the modern replacement for the LAL36300MB?
When upgrading, this breaker is typically replaced by the PowerPacT LJL36300. Because the original LAL36300MB features a short handle for shallow equipment profiles, you must verify that your enclosure has adequate depth clearance for the standard handle on the newer PowerPacT replacement.
Can the LAL36300MB be installed in an I-Line panelboard?
No, the LAL36300MB is a unit-mount circuit breaker with feed-thru lug connections. It lacks the plug-on jaw connections required for Square D I-Line panelboards.
Does this breaker include a push-to-trip feature?
Yes, Square D LAL frame circuit breakers include a push-to-trip button. This allows maintenance personnel to manually trip the breaker to verify the mechanical operation of the tripping mechanism without exposing themselves to live parts.
Is the LAL36300MB suitable for HVAC applications?
Yes, this circuit breaker is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment motor loads.
