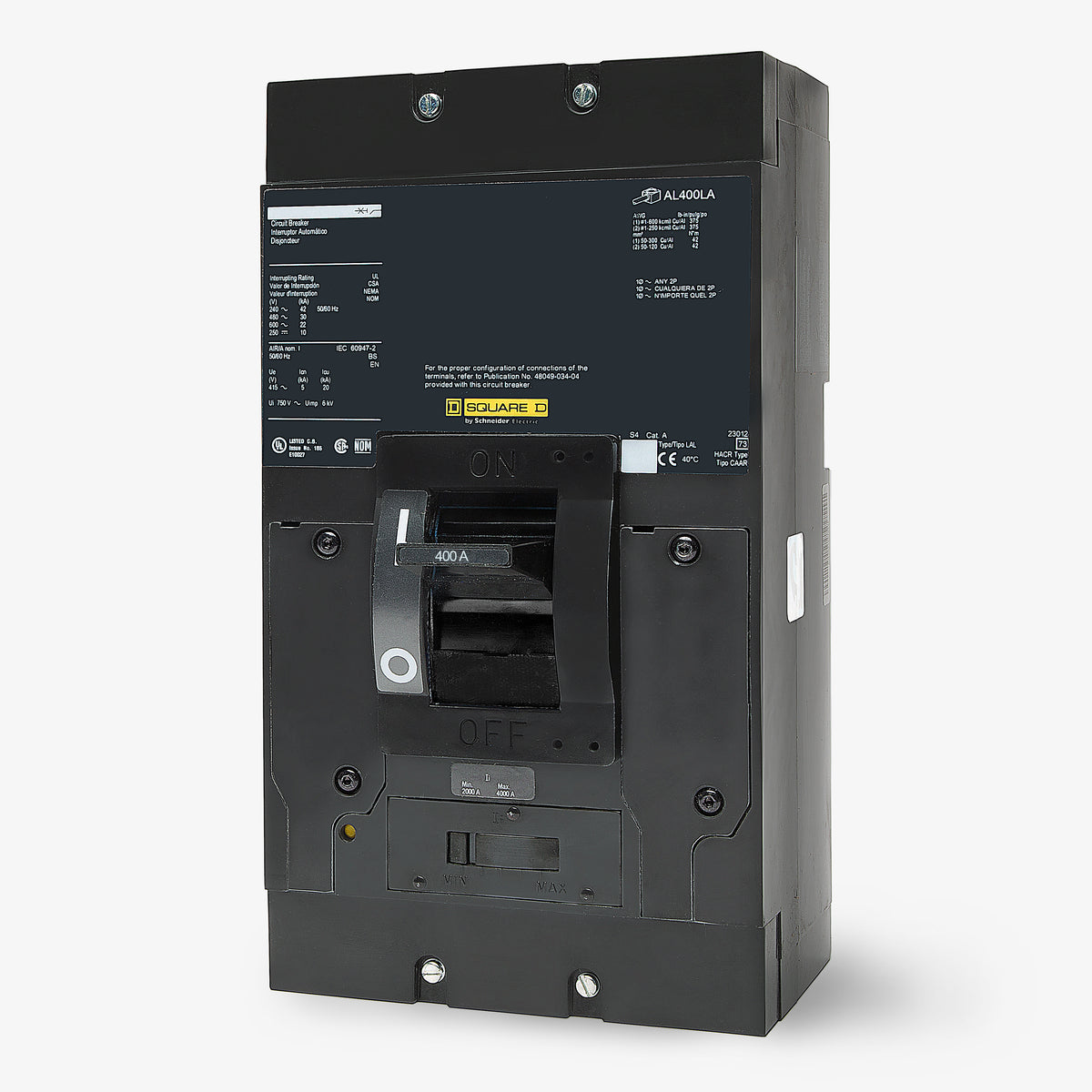

Square D LAL36400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
Square D
LAL36400
Molded Case Circuit Breaker
Brand
Square D
SKU
LAL36400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LAL36400 - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LAL36400 - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAL36400 |
| Series | LAL |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line and Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Square D LAL36400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAL36400-R |
| Series | LAL |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line and Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
350A 3 Pole Molded Case Circuit Breaker
350A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial environments, the Square D LAL36400 offers dependable thermal-magnetic protection. This 400A, 3-pole MCCB is part of the proven legacy L-Frame series, engineered to safeguard critical electrical infrastructure. The unit mount design integrates into compatible panelboards, switchboards, and motor control centers. For facilities planning upgrades, this model is superseded by the newer LJL36400 frame. Featuring 42 kAIC at 240VAC, it includes adjustable magnetic trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | LAL36400 |
| Series | LAL |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line and Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat are the magnetic trip adjustment settings for the LAL36400?
This 400A breaker features an adjustable instantaneous magnetic trip with a Low setting of 2000A and a High setting of 4000A.
What are the lug torque requirements for the LAL36400 breaker?
The standard AL400LA lugs require a tightening torque of 115 lb-in (13 N.m) for both the single 1 AWG to 600 kcmil and dual 1 AWG to 250 kcmil wire configurations.
What is the difference between the Square D LAL36400 and LHL36400 breakers?
Both are 400A, 3-pole unit-mount breakers with identical dimensions and trip units. The LHL36400 is the high-interrupting variant built for installations requiring a higher short-circuit fault rating.
Can I use the LAL36400 to replace an LA36400?
No, they are not mechanically interchangeable. The LA36400 is an I-Line breaker designed to plug directly into a panelboard bus on the line side. The LAL36400 is a unit-mount breaker equipped with feed-thru lugs on both the line and load sides.
Which lug kit comes standard with this breaker?

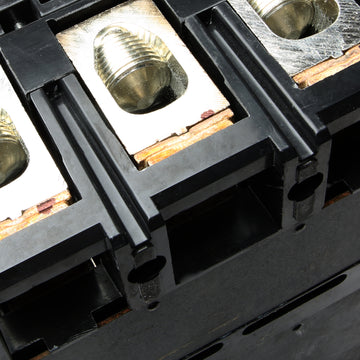

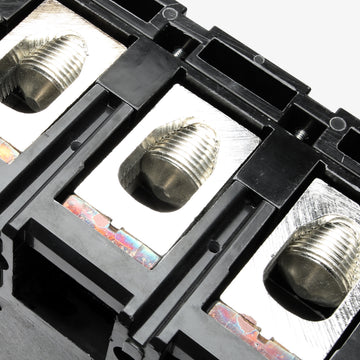

The LAL36400 includes factory-installed AL400LA mechanical lugs on both the line and load sides, which are rated for use with aluminum or copper conductors.
Is the LAL36400 HACR rated?
Yes, this breaker carries an HACR rating, making it suitable for heating, air conditioning, and refrigeration equipment applications.
