Square D LDA36600U33X Molded Case Circuit Breaker
- 600A
- 3 Pole
- I-Line
Square D
LDA36600U33X
Molded Case Circuit Breaker
Brand
Square D
SKU
LDA36600U33X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

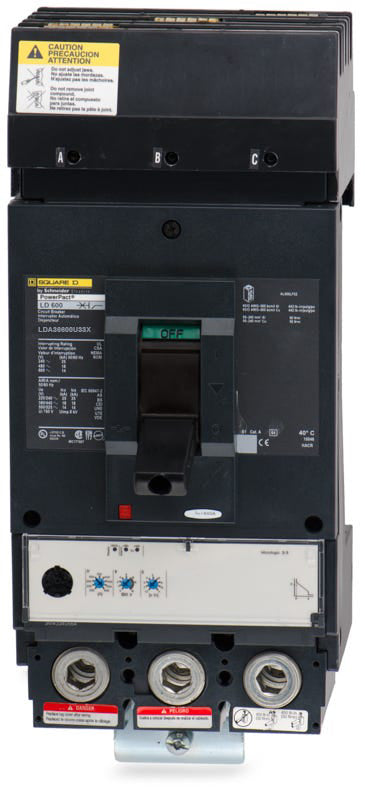

Square D LDA36600U33X - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LDA36600U33X - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LDA36600U33X |
| Series | LDA |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Amperage Range | 240-600A |
|---|
| Frame Type | LDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 2 x 2/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, True RMS Sensing, RoHS Compliant, Mercury Free |
Quantity
Square D LDA36600U33X - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | LDA |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Amperage Range | 240-600A |
|---|
| Frame Type | LDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 2 x 2/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, True RMS Sensing, RoHS Compliant, Mercury Free |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Delivering advanced microprocessor-based protection, the Square D LDA36600U33X serves as a 600A molded case circuit breaker within the PowerPacT L-frame series. The breaker mounts into Square D I-Line panelboards using a secure plug-on line connection, minimizing installation downtime. What sets this model apart is its Micrologic 3.3S LSI electronic trip unit, which adds short-time adjustability for superior selective coordination in multi-tiered networks.Specifications
| Brand | Square D |
|---|---|
| Part Number | LDA36600U33X |
| Series | LDA |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Amperage Range | 240-600A |
|---|
| Frame Type | LDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 2 x 2/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, True RMS Sensing, RoHS Compliant, Mercury Free |
Product FAQs
6 answersHow does the LDA36600U33X connect to the panelboard?
This breaker features an I-Line plug-on connection for the line side and mechanical lugs on the load side. It is designed to snap directly into Square D I-Line panelboards and switchboards, which helps reduce installation time.
What type of trip unit is included with the LDA36600U33X?
It comes equipped with a Micrologic 3.3S electronic trip unit. This solid state system provides adjustable Long-Time, Short-Time, and Instantaneous (LSI) protection, allowing for precise selective coordination in complex electrical systems.
What wire sizes are compatible with the load side lugs on this 600A breaker?
The factory-installed load lugs accept two conductors per phase, ranging from 2/0 AWG to 500 kcmil. They are rated for both aluminum and copper wire.
Is the LDA36600U33X rated for 80 percent or 100 percent continuous current?
This PowerPacT L-frame breaker has a standard 80 percent continuous current rating.
Can I use this breaker in place of older Square D L-frame breakers?
Yes, the PowerPacT LDA36600U33X is designed to fit into the same I-Line panelboard spaces as legacy Square D L-frame breakers, making it a direct upgrade for older 600A installations.
Why is the Short-Time trip function important on this breaker?
The Short-Time adjustment on the Micrologic 3.3S trip unit allows the breaker to delay tripping during a minor short circuit. This delay gives downstream breakers time to clear the fault, which prevents unnecessary power loss to the rest of the facility.
