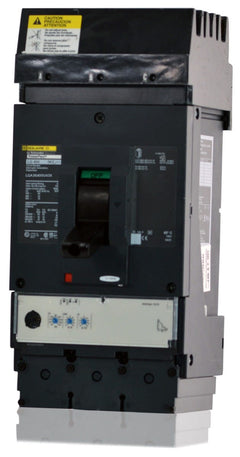

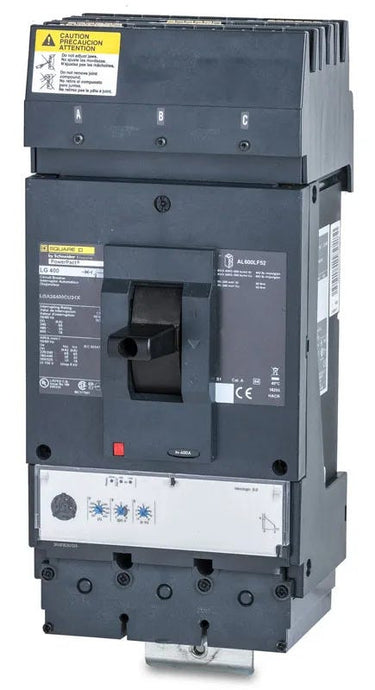

Schneider Electric LGA36400CU31X Molded Case Circuit Breaker
- 400A
- 3 Pole
- I-Line
Schneider Electric
LGA36400CU31X
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
LGA36400CU31X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric LGA36400CU31X - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric LGA36400CU31X - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | LGA36400CU31X |
| Series | LGA |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 125-400A |
|---|
| Frame Type | LGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 3.3 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Communication Module |
|---|---|
| Accessories | MicroLogic 3.3 Trip Unit |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NMX, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | 100% Rated, Current Limiting, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break, Double-Break Rotary Contact Structure, True RMS Sensing, Mercury Free, PVC Free |
Quantity
Schneider Electric LGA36400CU31X - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | LGA |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 125-400A |
|---|
| Frame Type | LGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 3.3 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Communication Module |
|---|---|
| Accessories | MicroLogic 3.3 Trip Unit |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NMX, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | 100% Rated, Current Limiting, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break, Double-Break Rotary Contact Structure, True RMS Sensing, Mercury Free, PVC Free |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial applications, this 400-amp PowerPacT L-Frame breaker features a Micrologic 3.3 trip unit for precise long-time and instantaneous protection. It mounts into standard Square D I-Line panelboards and switchboards. Rated for continuous operation at 100 percent of its capacity, it provides 35kAIC interrupting capability at 480VAC along with true RMS sensing to handle complex electrical loads efficiently.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | LGA36400CU31X |
| Series | LGA |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 125-400A |
|---|
| Frame Type | LGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 3.3 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Communication Module |
|---|---|
| Accessories | MicroLogic 3.3 Trip Unit |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NMX, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | 100% Rated, Current Limiting, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break, Double-Break Rotary Contact Structure, True RMS Sensing, Mercury Free, PVC Free |
