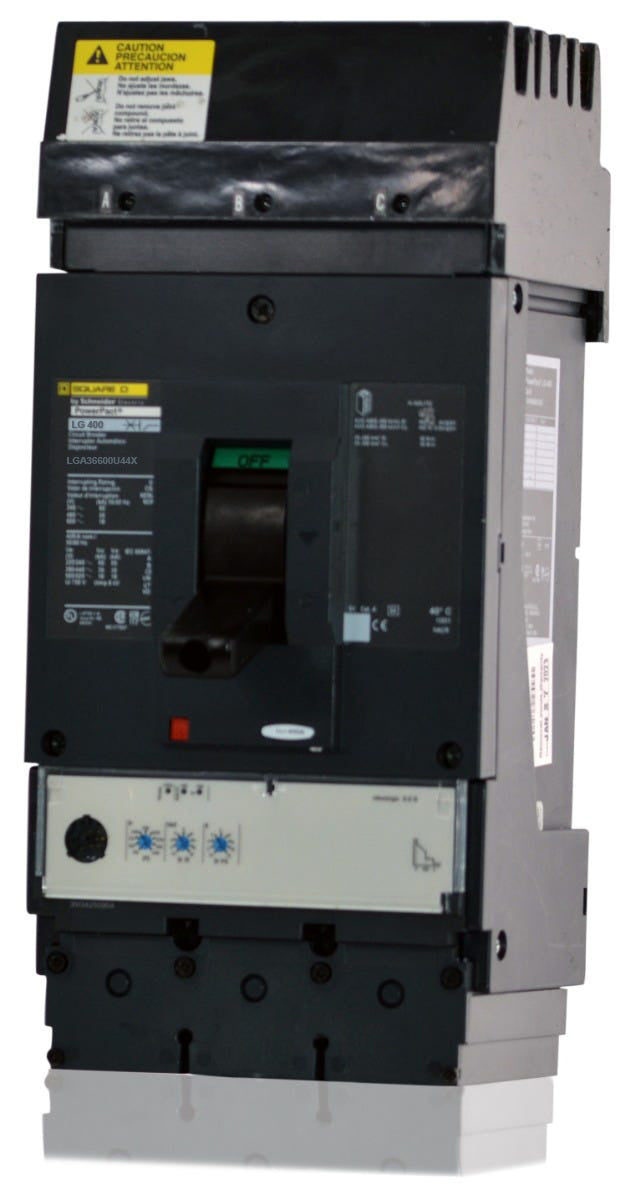

Square D LGA36600U44X Molded Case Circuit Breaker
- 600A
- 3 Pole
- I-Line
Square D
LGA36600U44X
Molded Case Circuit Breaker
Brand
Square D
SKU
LGA36600U44X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LGA36600U44X - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
600A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Built for high-capacity power distribution, this 600A L-Frame MCCB provides robust protection for commercial and industrial facilities. The plug-on I-Line mounting style ensures rapid installation and secure phase connections without requiring individual cable terminations. Equipped with a MicroLogic 6.3A electronic trip unit, it delivers highly configurable LSIG protection, including ground fault sensing and an integrated ammeter for precise system monitoring.Specifications
| Brand | Square D |
|---|---|
| Series | LGA |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | LGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 6.3A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | MicroLogic 6.3A Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NEMA, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, 80% Rated, Mercury Free, PVC Free, Integrated Ammeter |
Product FAQs
5 answersWhat does the U44X suffix mean in the LGA36600U44X catalog number?
The U44X suffix indicates this circuit breaker is equipped with a MicroLogic 6.3A electronic trip unit. In addition to adjustable Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG) trip functions, it features an integrated ammeter for local current monitoring.
How much panel space does this PowerPacT L-Frame breaker require?
This 3-pole L-Frame circuit breaker requires 6 inches of I-Line mounting space on the bus. This is larger than the 4.5 inches typically required by smaller H-Frame or J-Frame I-Line breakers.
How many conductors are required per phase for the line and load lugs?
The factory-installed mechanical lugs on this 600A breaker are designed to accept two conductors per phase. Each terminal handles wire sizes from 2/0 AWG to 500 kcmil in either aluminum or copper.
Can I install this breaker in a Square D NF or NQ panelboard?
No. The LGA36600U44X uses a plug-on I-Line connection and is exclusively compatible with Square D I-Line panelboards and switchboards. It will not mount in NQ, NF, or QO series panels.
Does this circuit breaker provide equipment ground-fault protection?
Yes. The G in the LSIG trip function code stands for Ground-Fault protection. The MicroLogic electronic trip unit allows you to adjust both the ground-fault pickup and delay settings to meet specific electrical code requirements for your feeder or service entrance.
