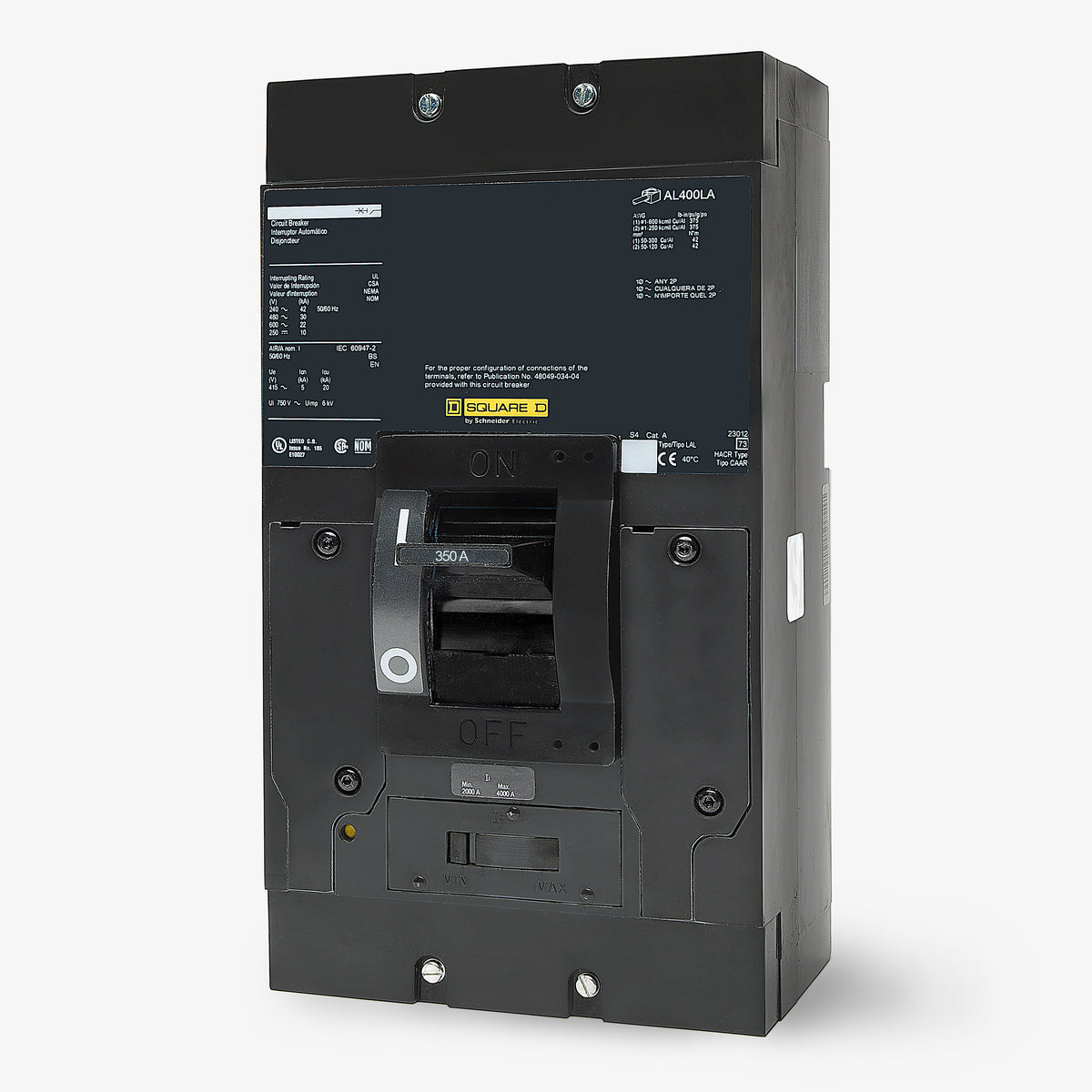

Square D LHL36350 Molded Case Circuit Breaker
- 350A
- 3 Pole
- Unit Mount
Square D
LHL36350
Molded Case Circuit Breaker
Brand
Square D
SKU
LHL36350
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LHL36350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LHL36350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LHL36350 |
| Series | LHL |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC |
| Frame Type | LHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D L-Frame Enclosures, Switchboards, Panelboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs (AL400LA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Quantity
Square D LHL36350 - 350A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LHL36350-R |
| Series | LHL |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC |
| Frame Type | LHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D L-Frame Enclosures, Switchboards, Panelboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs (AL400LA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Similar Items
300A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Handling higher current demands in commercial facilities, the LHL36350 is a 350A molded case circuit breaker featuring adjustable magnetic trip settings. This L-Frame device installs into legacy Square D switchboards and industrial panelboards requiring a unit-mount connection. Often replaced by the adjustable LGL36400 in modern setups, this specific model is critical for maintaining older infrastructure without extensive retrofitting. It provides 65kAIC interrupting capacity at 240VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | LHL36350 |
| Series | LHL |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC |
| Frame Type | LHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D L-Frame Enclosures, Switchboards, Panelboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs (AL400LA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat enclosures and panels are compatible with the LHL36350?
This unit mount breaker is designed for legacy Square D L-Frame enclosures, switchboards, and industrial panelboards.
What is the adjustable magnetic trip range for this breaker?
The LHL36350 features a fixed thermal and adjustable magnetic trip unit with a magnetic hold current of 1750A and a maximum trip setting of 3500A.
Can the Square D LHL36350 be reverse fed?
Yes. Because this thermal magnetic breaker does not have specific line and load markings, it can be reverse fed for supply side applications.

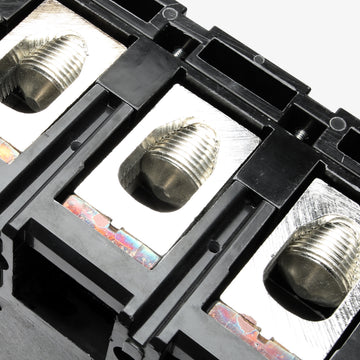

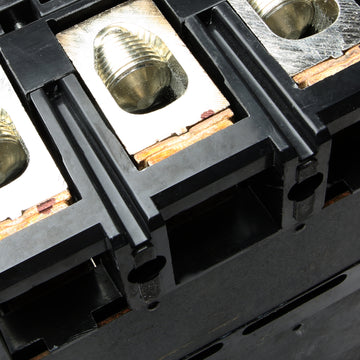

What wire sizes are accepted by the standard lugs?
The standard lugs accommodate either one 1 AWG to 600 kcmil wire or two 1 AWG to 250 kcmil wires per phase, and are rated for both aluminum and copper conductors.
What is the modern replacement for the legacy LHL series?
The LHL series is a legacy L-Frame breaker. In modern electrical systems, it is typically replaced by the Square D PowerPact L-Frame series, though exact retrofitting requirements and dimensions may vary.
What safety and performance standards does this breaker meet?
This breaker is HACR rated and meets UL 489, CSA C22.2 No. 5, NEMA AB 1, and IEC 60947-2 standards for commercial and industrial applications.
