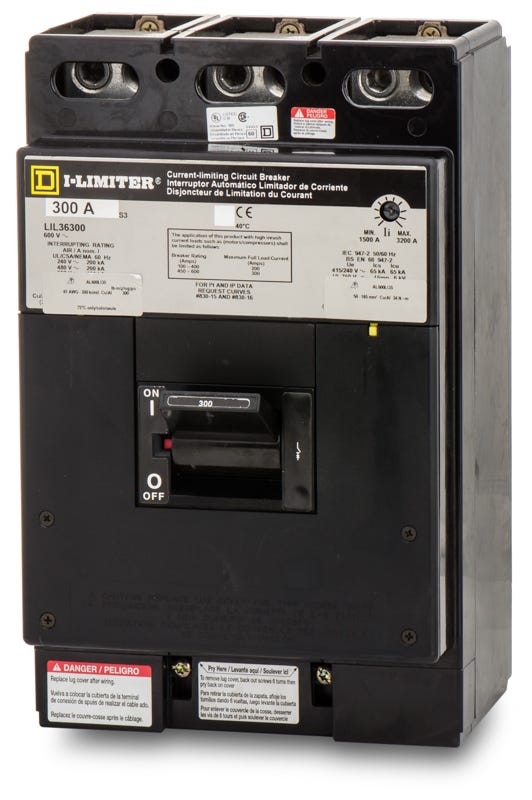

Square D LIL36300 Molded Case Circuit Breaker
- 300A
- 3 Pole
- Unit Mount
Quantity
Square D LIL36300 - 300A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D LIL36300 - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LIL36300 |
| Series | LIL |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480Y/277VAC, 200kA @ 480VAC, 100kA @ 600Y/347VAC, 100kA @ 600VAC |
| Frame Type | LIL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (2) 2/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated |
Quantity
Square D LIL36300 - 300A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LIL36300-R |
| Series | LIL |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480Y/277VAC, 200kA @ 480VAC, 100kA @ 600Y/347VAC, 100kA @ 600VAC |
| Frame Type | LIL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (2) 2/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated |
Description
Engineered for heavy industrial applications, the LIL36300 is a 3-pole, 300A molded case circuit breaker from Square D. It installs into compatible switchboards and motor control centers. This legacy L-Frame breaker features unit mounting with lug terminals for (2) 2/0 AWG to 500 kcmil wire. It is replaced by the LRL36400U31X set to 300A. Rated 200kAIC at 480VAC, it delivers high-capacity fault interruption.Specifications
| Brand | Square D |
|---|---|
| Part Number | LIL36300-R |
| Series | LIL |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480Y/277VAC, 200kA @ 480VAC, 100kA @ 600Y/347VAC, 100kA @ 600VAC |
| Frame Type | LIL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (2) 2/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated |
Product FAQs
5 answersIs the Square D LIL36300 still actively manufactured?
The LIL36300 is classified as a legacy L-Frame MCCB. Square D replaces this unit-mount breaker with the newer PowerPact L-Frame series, specifically catalog number LRL36400U31X, which features an electronic trip unit that can be adjusted down to a 300A rating.
What are the wire size limits for the LIL36300 terminals?
The factory-installed lugs accept dual conductors per phase, allowing you to run two parallel cables ranging from 2/0 AWG up to 500 kcmil in either aluminum or copper.
Is the LIL36300 considered a current-limiting breaker?
Yes. With a massive 200kAIC interrupting rating at 480V, this breaker features high-speed contact separation. This limits both peak fault current and I2t let-through energy during a severe short circuit to protect downstream equipment.
Will the LIL36300 mount into a Square D I-Line panel?
No. This is a unit-mount, feed-thru circuit breaker intended for lug-to-lug installation in individual enclosures, motor control centers, or switchboard base pan assemblies. It does not have the plug-on jaw connections required for I-Line busbars.
Does the LIL36300 allow for trip curve adjustments?
The magnetic instantaneous trip is fully adjustable, letting you dial in the short-circuit pickup to avoid nuisance tripping from high inrush currents. However, the thermal overload element is fixed at 300 amps.
