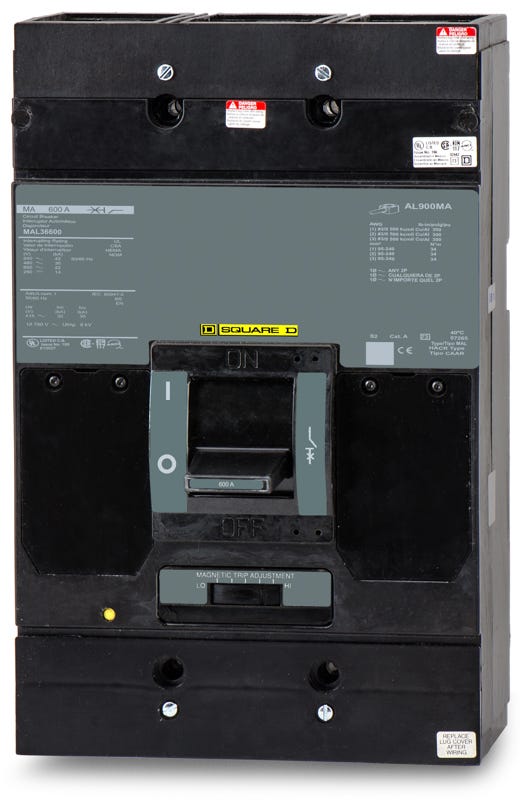

Square D MAL36600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- Unit Mount
Square D
MAL36600
Molded Case Circuit Breaker
Brand
Square D
SKU
MAL36600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MAL36600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D MAL36600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | MAL36600 |
| Series | MAL |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Square D MAL36600 - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | MAL36600-R |
| Series | MAL |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
350A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D MAL36600 is a 600A, 3-pole molded case circuit breaker. This legacy M-Frame unit provides dependable thermal-magnetic protection for high-capacity distribution systems. Designed for unit-mount configurations, it installs into Square D switchboards, motor control centers, and enclosures. For modern upgrades, it is replaced by the MGL36600. Rated 30kAIC at 480VAC, it features an adjustable magnetic trip and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | MAL36600 |
| Series | MAL |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat types of electrical equipment is the Square D MAL36600 designed for?
This breaker is commonly installed in Square D switchboards, motor control centers, and standalone industrial enclosures.
Which replacement lug kit is compatible with the MAL36600?
The AL900MA mechanical lug kit is the standard replacement for this breaker frame. It accommodates three conductors per phase, accepting 3/0 AWG to 500 kcmil aluminum or copper wire.
How does the thermal magnetic trip unit operate on the MAL36600?
It utilizes a fixed thermal element to protect against standard overloads and an adjustable magnetic trip to allow fine-tuning of the instantaneous short circuit protection threshold.
Can I adjust the standard overload threshold on this breaker?
No, the long-time thermal trip function is fixed at 600 amps. Only the instantaneous magnetic trip threshold can be adjusted on this specific model.
Does the MAL36600 use a plug-on or bolt-on mounting configuration?
It is a unit mount, bolt-on circuit breaker. It requires a hardwired feed-thru connection and is not compatible with Square D I-Line plug-on panelboards.
Can this breaker be used in DC voltage applications?
Yes, the MAL36600 is rated for use in 250VDC systems and carries an interrupting rating of 14kA at that voltage, providing flexibility for industrial DC installations.
What frame family does the MAL36600 belong to?
It is part of the Square D legacy M-Frame molded case circuit breaker lineup. This series is utilized in high-capacity distribution systems requiring dependable thermal magnetic protection.
