Square D MG24474 Miniature Circuit Breaker
- 63A
- 3 Pole
- DIN Rail
Quantity

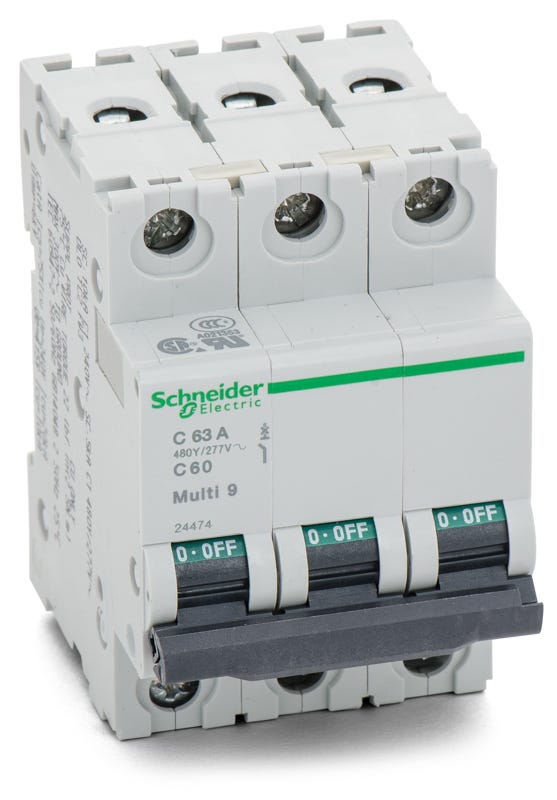

Square D MG24474 - 63A 3 Pole Miniature Circuit Breaker
New
Quantity
Description
Built for demanding industrial environments, this 63-amp Multi9 miniature breaker provides essential supplementary protection for control wiring. The thermal-magnetic mechanism ensures rapid response to electrical faults within factory automation setups. Designed for 35mm DIN rail enclosures, it installs easily into standard OEM control panels. For modern upgrades, this specific model is cross-referenced and replaced by the M9F22363. The C-curve trip characteristic accommodates standard loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | MG24474 |
| Series | C60N |
| Amperage | 63A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC, 480Y/277VAC, 415VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 480Y/277VAC, 10kA @ 415VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | DIN Rail Enclosures, OEM Control Panels |
| Wire Gauge | 14-2 AWG (Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | C |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Padlock Attachment (Optional) |
| Standards | CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077 |
| Approval | CCC, CE, CSA, IEC, UL, UR |
| Temp Rating | -30C to 70C |
| Construction Features | Current Limiting, Trip-Free Mechanism, Reverse Feed, RoHS Compliant |
Product FAQs
5 answersIs the MG24474 still in active production, or is there a direct replacement?
The MG24474 is a legacy Multi 9 C60N series breaker. For modern upgrades, Schneider Electric has replaced this specific model with the Acti9 series part number M9F22363.
What trip curve does the MG24474 feature?
This breaker features a C-curve thermal magnetic trip characteristic. It is designed to trip instantaneously at 7 to 10 times the rated current, making it suitable for standard industrial loads and control wiring.
Can the MG24474 be used as a primary branch circuit breaker?
No. The MG24474 is a UL 1077 recognized supplementary protector. It is designed to provide additional protection for sensitive electronics inside equipment and must be used on the load side of a primary UL 489 branch circuit breaker or fuse.
Does the MG24474 support field-installable accessories?
Yes, this Multi 9 supplementary protector is compatible with standard C60N electrical auxiliaries, including shunt trips, auxiliary switches, alarm switches, and undervoltage releases.
Is the MG24474 a current-limiting breaker?
Yes, this breaker features a current-limiting design. In the event of a fault, it provides rapid electrical separation to minimize let-through energy and reduce potential damage to downstream components.
