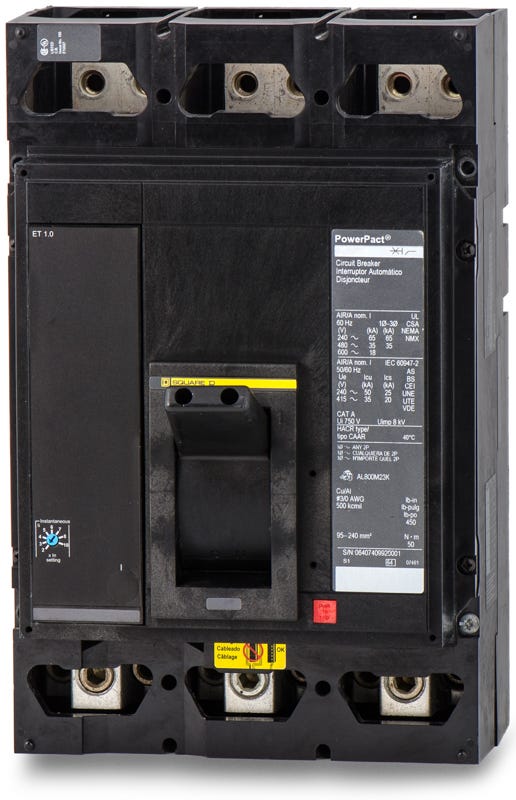

Square D MGL36700 Molded Case Circuit Breaker
- 700A
- 3 Pole
- Unit Mount
Square D
MGL36700
Molded Case Circuit Breaker
Brand
Square D
SKU
MGL36700
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MGL36700 - 700A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D MGL36700 - 700A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | MGL |
| Amperage | 700A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | MGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs Included (AL800M23K) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Mercury Free, PVC Free, RoHS Compliant, Non-Interchangeable Trip, True RMS Sensing |
Quantity
Square D MGL36700 - 700A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | MGL |
| Amperage | 700A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | MGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs Included (AL800M23K) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Mercury Free, PVC Free, RoHS Compliant, Non-Interchangeable Trip, True RMS Sensing |
Similar Items
600A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
The MGL36700 is a 3-pole, 700A MCCB from the Square D PowerPacT M-Frame family. Engineered for commercial distribution, it provides reliable power management for motor control centers and switchboards. This unit-mount breaker installs into standard Square D enclosures. Note that this model is replaced by the PGL36080, which requires a retrofit kit. Rated 35kAIC at 480V, it utilizes an ET 1.0 electronic trip unit (LI) for precise coordination that is unaffected by ambient temperature changes.Specifications
| Brand | Square D |
|---|---|
| Series | MGL |
| Amperage | 700A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | MGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs Included (AL800M23K) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Mercury Free, PVC Free, RoHS Compliant, Non-Interchangeable Trip, True RMS Sensing |
Product FAQs
6 answersWhat wire size and torque are required for the lugs on the MGL36700?
The standard mechanical lugs accept three 3/0 AWG to 500 kcmil aluminum or copper conductors per phase. The wire binding screws must be torqued to 442.5 lb-in (50 N.m).
Can I adjust the trip settings on the MGL36700?
The MGL36700 features a basic ET 1.0 electronic trip unit with fixed long-time protection and adjustable instantaneous protection. The instantaneous pickup can typically be adjusted from 2 to 10 times the nominal rating, but the long-time trip point cannot be field adjusted.
Can the PowerPacT MGL36700 be reverse fed?
Yes, PowerPacT M-frame electronic trip circuit breakers can be reverse connected without restrictive line and load markings.
What is the difference between the MGL36700 and the MGA36700?
The MGL36700 is a unit-mount, feed-thru circuit breaker with mechanical lugs on both the line and load sides. The MGA36700 is the I-Line plug-on version designed specifically for Square D I-Line panelboards and switchboards.
What equipment is the MGL36700 compatible with?
This unit-mount breaker is designed for use in Square D switchboards, motor control centers, and individual enclosures that accept PowerPacT M-frame devices.
What does the G in the MGL36700 part number indicate?
The G designates the interrupting rating tier for this PowerPacT M-frame breaker, which provides 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC.
