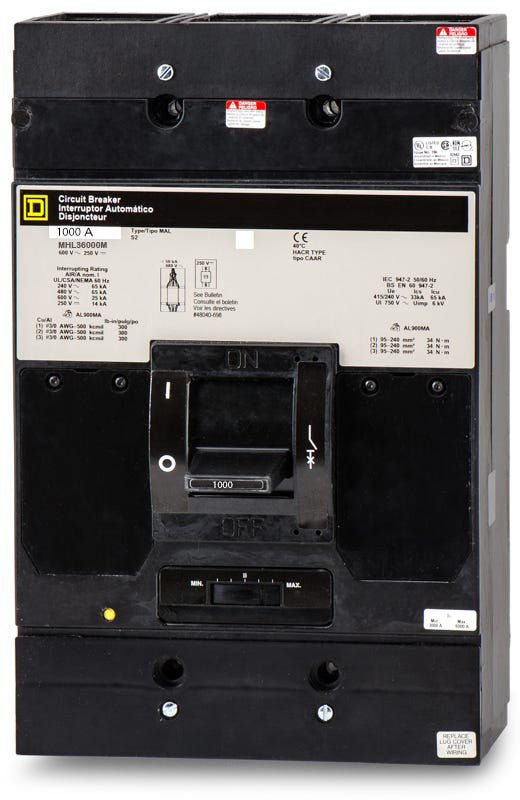

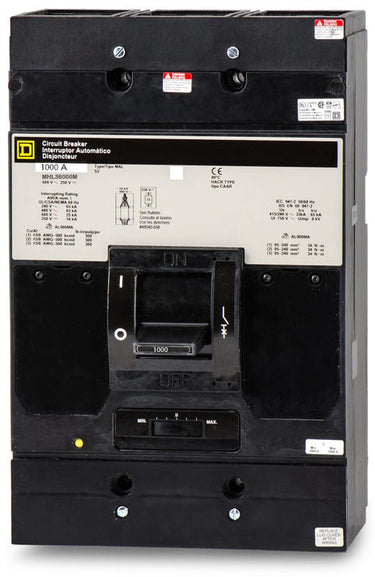

Square D MHL36000M - 1000A 3 Pole Automatic Molded Case Switch
Re-Certified
Quantity
Description
Belonging to the legacy M-Frame lineup, the Square D MHL36000M functions as a 1000A molded case switch for commercial applications. It provides safe circuit isolation and manual disconnect capabilities. This unit-mount switch installs into Square D switchboards and motor control centers. For facilities upgrading infrastructure, this component is replaced by the PJL36100U44A model.Specifications
| Brand | Square D |
|---|---|
| Part Number | MHL36000M |
| Series | MHL |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | M |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL1000MA) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
