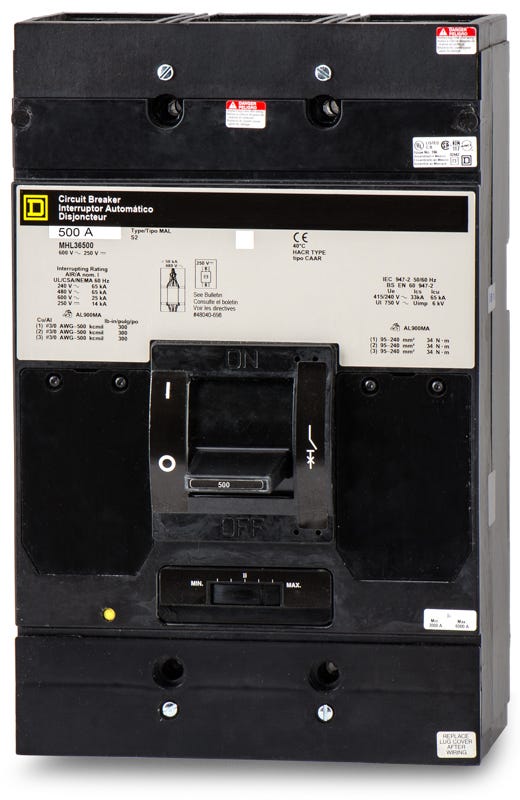

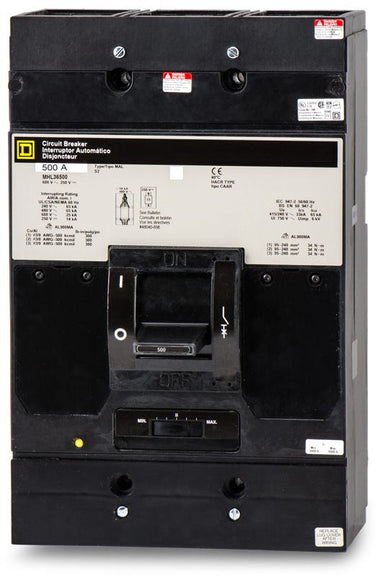

Square D MHL36500 Molded Case Circuit Breaker
- 500A
- 3 Pole
- Unit Mount
Quantity
Square D MHL36500 - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D MHL36500 - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | MHL36500 |
| Series | MHL |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Quantity
Square D MHL36500 - 500A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | MHL36500-R |
| Series | MHL |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Description
Engineered for heavy-duty industrial applications, the MHL36500 is a 500A, 3-pole MCCB from Square D's legacy M-Frame series. This unit-mount breaker installs into compatible switchboards, motor control centers, and enclosures. It serves as a direct replacement for aging M-Frame installations, though Square D has officially replaced this series with the PowerPact MJL36500. It features a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions.Specifications
| Brand | Square D |
|---|---|
| Part Number | MHL36500 |
| Series | MHL |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between the Square D MHL36500 and the MAL36500?
Both are 500A, 3-pole legacy M-Frame circuit breakers, but they have different interrupting ratings. The MHL36500 is the high-interrupting capacity version, rated at 65kAIC at 480V. The MAL36500 is the standard-interrupting version, rated at 30kAIC at 480V.
What lug kit does the MHL36500 use, and what wire sizes does it accept?
The standard mechanical lug kit for this breaker is the Square D AL900MA. Each kit includes one lug, which accepts three (3) 3/0 AWG to 500 kcmil aluminum or copper wires per phase.
Can the MHL36500 be installed in an I-Line panelboard?
No, the MHL36500 is a unit-mount (feed-thru) circuit breaker. For I-Line panelboard installations, an I-Line specific breaker, such as the PowerPact MJA36500 or legacy MHA36500, is required.
Is the Square D MHL36500 still manufactured?
The MHL36500 is a legacy M-Frame component. For newer installations, Square D (Schneider Electric) has replaced this series with the PowerPact M-Frame, specifically the MJL36500 for high-interrupting applications.
Can I add a shunt trip or auxiliary switch to the MHL36500 in the field?
No, internal accessories such as shunt trips, undervoltage releases, and auxiliary switches for legacy Square D M-frame breakers are factory-installed only. They cannot be added in the field.
How is the magnetic trip adjusted on the MHL36500?
The MHL36500 features a fixed thermal element for overload protection and an adjustable magnetic element for short-circuit protection. The magnetic trip is adjusted via a dial on the front of the breaker, allowing you to set the instantaneous trip threshold based on your application's coordination requirements.
