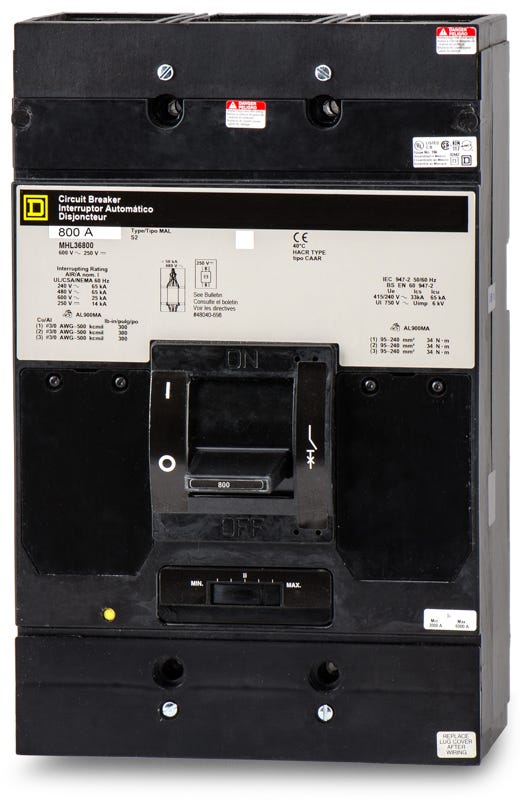

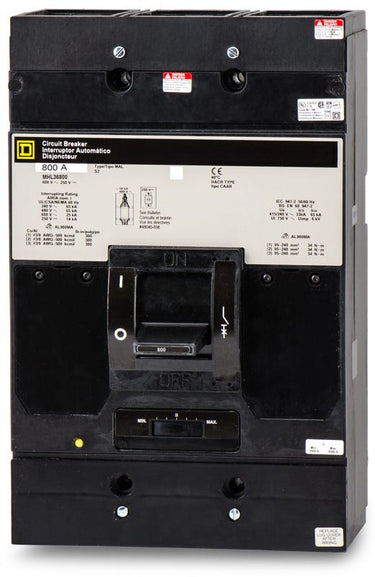

Square D MHL36800 Molded Case Circuit Breaker
- 800A
- 3 Pole
- Unit Mount
Square D
MHL36800
Molded Case Circuit Breaker
Brand
Square D
SKU
MHL36800
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MHL36800 - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D MHL36800 - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | MHL36800 |
| Series | MHL |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Quantity
Square D MHL36800 - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | MHL36800-R |
| Series | MHL |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Similar Items
700A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
Description
Designed for high-capacity power distribution, the MHL36800 is an 800A, 3-pole MCCB from Square D. It features thermal-magnetic technology for precise long-time and instantaneous (LI) protection. This unit-mount M-frame breaker installs into Square D switchboards, motor control centers, and enclosures. For modern upgrades, it is replaced by the MJL36800. Providing a 65kAIC rating at 480V, this breaker ensures reliable performance in demanding environments. It includes AL900MA lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | MHL36800-R |
| Series | MHL |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the modern Square D replacement for the legacy MHL36800 circuit breaker?
The MHL36800 is a legacy M-Frame breaker that has been replaced by the Square D PowerPact M-Frame series. The direct functional replacement is the MJL36800, which offers the exact same 800A capacity, 3-pole configuration, and 65kA interrupting rating at 480VAC.
Which lug kit is standard for the MHL36800, and what wire sizes does it accept?
The standard mechanical lug kit for the legacy M-Frame MHL36800 is the AL900MA. It accepts three 3/0 AWG to 500 kcmil aluminum or copper conductors per phase. Do not confuse this with the AL800M23K lug kit, which is designed exclusively for newer PowerPact M and P frame breakers.
What does the "H" in the MHL36800 catalog number signify?
In Square D legacy M-Frame nomenclature, the "H" indicates the high interrupting capacity tier. The MHL36800 is rated for 65kA at 480VAC, which differentiates it from the standard interrupting MAL36800 frame that tops out at lower fault current ratings.
What is the magnetic trip range for the MHL36800 breaker?
While the thermal trip is fixed at 800A, the MHL36800 features an adjustable magnetic (instantaneous) trip function. The AC magnetic trip setting can be adjusted from a low of 4000A to a high of 8000A to coordinate with downstream devices and manage inrush currents.
Is the standard MHL36800 breaker rated for 80 percent or 100 percent continuous duty?
Standard thermal magnetic legacy breakers like the MHL36800 are 80 percent rated. In accordance with National Electrical Code (NEC) guidelines for continuous loads lasting three hours or more, the continuous current should not exceed 640A (80 percent of its 800A rating).
Can I use the MHL36800 in an I-Line panelboard?
No. The MHL36800 is a unit mount (feed-thru) circuit breaker designed for individual enclosures, switchboards, or motor control centers. It does not feature the plug-on jaw connectors required for Square D I-Line panelboards. The I-Line equivalent for this legacy series is the MH36800.
