Square D MJA36800E10 Molded Case Circuit Breaker
- 800A
- 3 Pole
- I-Line
Square D
MJA36800E10
Molded Case Circuit Breaker
Brand
Square D
SKU
MJA36800E10
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

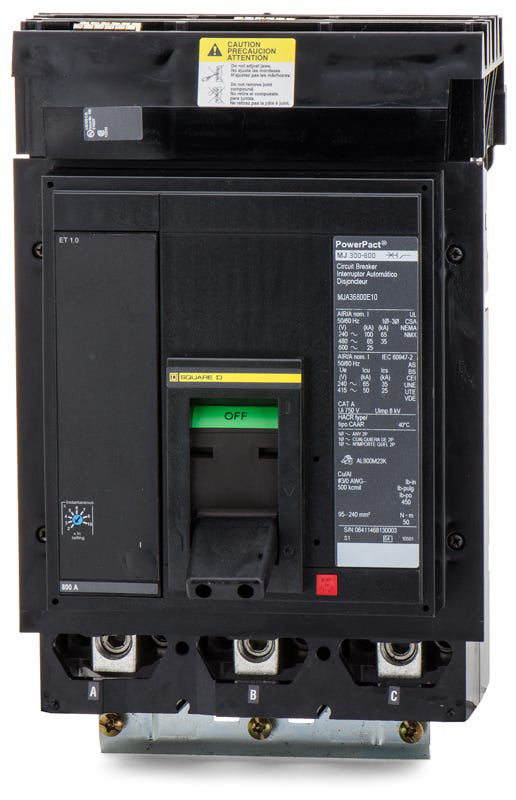

Square D MJA36800E10 - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
700A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
Description
Offering highly configurable protection, the Square D MJA36800E10 is a 3-pole, 800A molded case circuit breaker equipped with an advanced adjustable electronic trip unit. It installs into I-Line panelboards and switchboards, serving as a drop-in replacement for discontinued MA and MH frames. With the ability to adjust the trip setting between 300A and 800A, this 65 kAIC (at 480V) breaker allows facility managers to precisely coordinate their electrical distribution systems.Specifications
| Brand | Square D |
|---|---|
| Series | MJA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 300-800A |
|---|
| Frame Type | MJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | (3) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL800M23K) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Mercury Free, PVC Free, Push-to-Trip, 80% Rated |
Product FAQs
6 answersCan the MJA36800E10 be used to replace older Square D circuit breakers?
Yes, the PowerPacT M-Frame MJA36800E10 is engineered as a direct drop-in replacement for discontinued Square D MA and MH frame circuit breakers in existing I-Line panelboards and switchboards.
What does the E10 suffix in the MJA36800E10 catalog number indicate?
The E10 suffix denotes that the breaker is equipped with an ET 1.0 basic electronic trip unit. This solid-state technology provides Long-Time and Instantaneous (LI) overcurrent protection.
How is the continuous current rating adjusted on this breaker?
The electronic trip unit features a selector dial that allows electricians to adjust the long-time trip setting between 300A and 800A. This enables precise coordination with the specific ampacity requirements of your electrical distribution system.
What are the advantages of the ET 1.0 electronic trip unit over standard thermal-magnetic breakers?
Solid-state electronic trip units simulate thermal-magnetic functions but deliver highly accurate, repeatable tripping performance. They are also significantly less sensitive to ambient temperature changes inside the panel enclosure.
Is the MJA36800E10 rated for 80 percent or 100 percent continuous current?
This standard Square D PowerPacT M-Frame molded case circuit breaker carries an 80 percent continuous current rating.
What type of panelboard is required for the MJA36800E10?
This breaker features a line-side I-Line plug-in bracket. It must be installed in a Square D I-Line panelboard or switchboard that has sufficient bus capacity and physical mounting space to accommodate an 800A M-Frame device.
