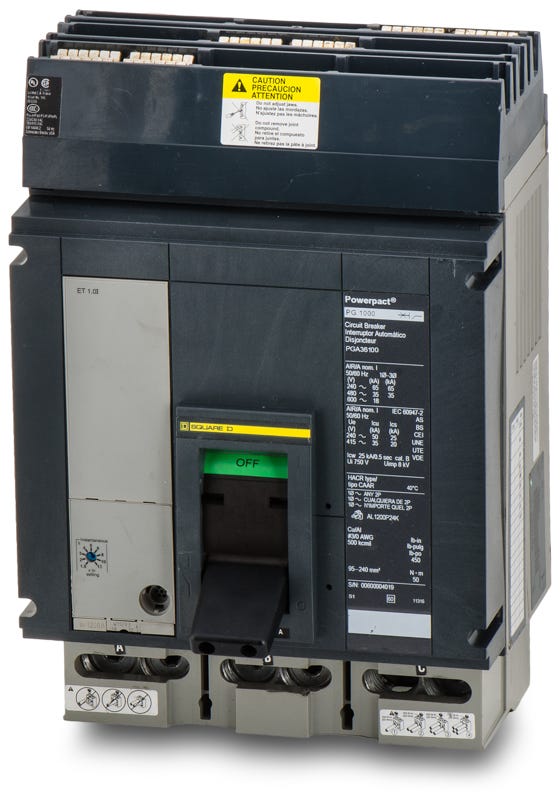

Square D PGA36100 Molded Case Circuit Breaker
- 1000A
- 3 Pole
- I-Line
Quantity
Square D PGA36100 - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D PGA36100 - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | PGA36100 |
| Series | PGA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | PGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit Model | ET 1.0I |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated |
Quantity
Square D PGA36100 - 1000A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | PGA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | PGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit Model | ET 1.0I |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated |
Description
Built to handle high-capacity industrial loads, this 1000A PowerPacT molded case circuit breaker utilizes microprocessor-based sensing for enhanced accuracy. It seamlessly integrates into Square D I-Line panelboards and acts as a modernized substitute for the legacy MA361000 series. The electronic trip technology provides adjustable long-time and instantaneous (LI) functions, delivering superior coordination and 35kA interrupting capacity at 480V.Specifications
| Brand | Square D |
|---|---|
| Part Number | PGA36100 |
| Series | PGA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | PGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Trip Unit Model | ET 1.0I |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated |
Product FAQs
6 answersCan the PGA36100 be installed in standard QO or NF panels?
No. The PGA36100 features an I-Line plug-in mounting bracket designed exclusively for Square D I-Line panelboards and switchboards. It will not fit in standard QO, NQ, or NF enclosures.
What wire capacity do the lugs on the PGA36100 handle?
The factory load-side lugs accept four conductors per phase, supporting wire sizes from 3/0 AWG up to 500 kcmil. These mechanical lugs are rated for both aluminum and copper (Al/Cu) wire.
How are the trip settings adjusted on the PGA36100?
This breaker is equipped with a basic solid-state electronic trip unit providing Long-Time and Instantaneous (LI) protection. The long-time pickup (thermal equivalent) is fixed at the 1000A rating, while the instantaneous pickup (magnetic equivalent) is adjustable to coordinate short-circuit protection.
What does the "G" in the PGA36100 catalog number designate?
In the PowerPacT P-frame nomenclature, the "G" denotes the interrupting rating tier. A G-rated breaker provides a 35kAIC rating at 480VAC. Applications requiring higher interrupting capacities in the exact same footprint require a J-rated (PJA) or L-rated (PLA) breaker.
Is the electronic trip unit on the PGA36100 field-interchangeable?
No. The base PGA36100 comes with a basic electronic trip unit that cannot be swapped or upgraded in the field. If your application requires advanced metering or interchangeable MicroLogic trip units, a breaker with a specific trip-unit suffix code is required.
Is it safe to install the PGA36100 onto an energized I-Line bus?
No. Always de-energize the I-Line panelboard or switchboard before plug-in installation. Attempting to seat a 1000A frame onto a live bus presents an extreme arc flash and shock hazard. Strict adherence to NFPA 70E lockout/tagout procedures is required.
