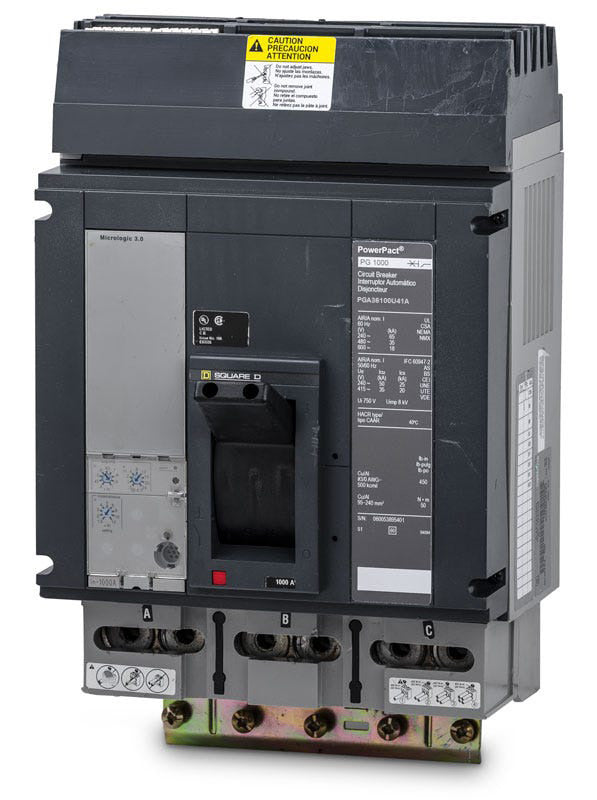

Square D PGA36100U41A Molded Case Circuit Breaker
- 1000A
- 3 Pole
- I-Line
Square D
PGA36100U41A
Molded Case Circuit Breaker
Brand
Square D
SKU
PGA36100U41A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D PGA36100U41A - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
3 Pole Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
1200A 3 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT P-Frame series, this 1000-ampere molded case circuit breaker provides robust protection for commercial electrical systems. It features a Micrologic 3.0A electronic trip unit with adjustable long-time and instantaneous (LI) settings. Designed for seamless integration, the unit installs into Square D I-Line panelboards and switchboards. It serves as a modern replacement for legacy MA361000 breakers.Specifications
| Brand | Square D |
|---|---|
| Part Number | PGA36100U41A |
| Series | PGA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 400-1000A |
|---|
| Frame Type | PGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable Thermal, Adjustable Magnetic |
| Trip Unit Model | MicroLogic 3.0A |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment, Communication Module |
|---|---|
| Accessories | Micrologic 3.0A Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, True RMS Sensing, Ammeter |
Product FAQs
6 answersWhat type of panelboard is required for the PGA36100U41A?
This breaker features an I-Line plug-in connection and is designed exclusively for use in Square D I-Line panelboards and switchboards that can accommodate PowerPacT P-Frame breakers.
What does the U41A suffix in the PGA36100U41A catalog number indicate?
The U41A designates that the breaker is equipped with a Micrologic 3.0A electronic trip unit. This provides adjustable Long-Time and Instantaneous (LI) trip functions, along with an integrated ammeter for current monitoring.
Can the PGA36100U41A be used to replace older Square D breakers?
Yes, this PowerPacT P-Frame breaker serves as a modern replacement for legacy Square D MA-frame breakers, such as the MA361000, in existing I-Line panelboards.
What is the wire capacity for the lugs on this 1000A breaker?
The factory-installed lugs on the PGA36100U41A accept four 3/0 AWG to 500 kcmil aluminum or copper cables per phase.
Does the PGA36100U41A include ground fault protection?
No, the included Micrologic 3.0A trip unit provides only Long-Time and Instantaneous (LI) protection. If your application requires ground fault protection, you will need a breaker with a Micrologic 6.0A (LSIG) trip unit, such as the PGA36100U44A.
Does this breaker require a separate mounting kit for I-Line panels?
No, the PGA36100U41A comes with the I-Line bracket and plug-in jaw assembly factory-installed, allowing it to mount directly onto the panelboard bus without additional hardware.
