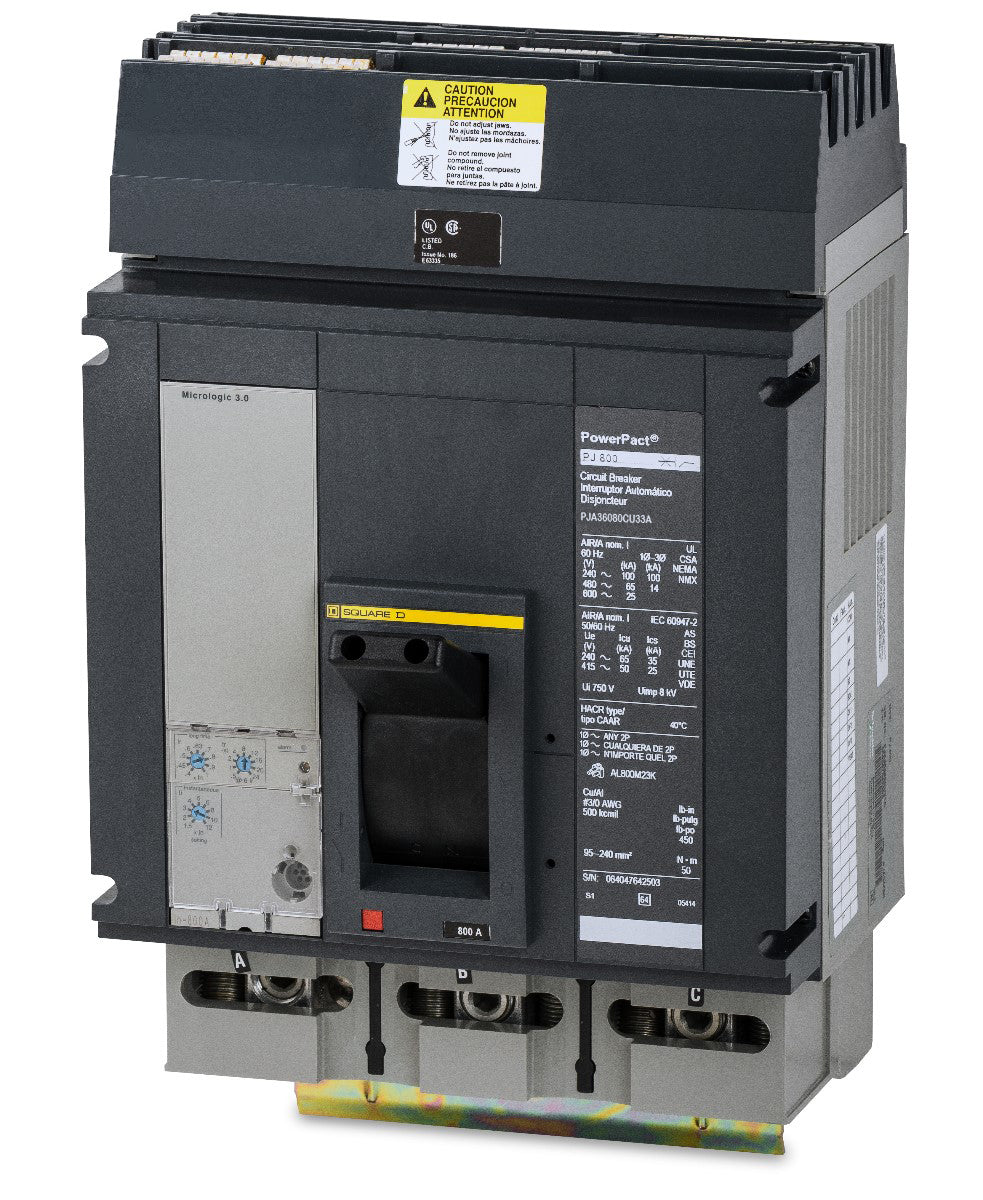

Square D PJA36080CU33A Molded Case Circuit Breaker
- 800A
- 3 Pole
- I-Line
Square D
PJA36080CU33A
Molded Case Circuit Breaker
Brand
Square D
SKU
PJA36080CU33A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D PJA36080CU33A - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D PJA36080CU33A - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | PJA36080CU33A |
| Series | PJA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 320-800A |
|---|
| Frame Type | PJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | (3) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 5.0 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module, Motor Operator |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, RoHS, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 100% Rated, True RMS Sensing |
Sold out
Quantity
Square D PJA36080CU33A - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | PJA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 320-800A |
|---|
| Frame Type | PJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | (3) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 5.0 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module, Motor Operator |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, RoHS, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 100% Rated, True RMS Sensing |
Similar Items
800A 3 Pole Molded Case Circuit Breaker
800A 3 Pole Molded Case Circuit Breaker
800A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding industrial applications, the Square D PJA36080CU33A is a 3-pole, 800A molded case circuit breaker from the PowerPacT P-Frame family. It features an I-Line plug-on mounting style for the line side and mechanical lugs on the load side, ensuring secure integration into Square D I-Line panelboards and switchboards. This 100% rated MCCB is equipped with a MicroLogic 5.Specifications
| Brand | Square D |
|---|---|
| Part Number | PJA36080CU33A |
| Series | PJA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 320-800A |
|---|
| Frame Type | PJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | I-Line Panelboards, Switchboards |
| Wire Gauge | (3) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 5.0 |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module, Motor Operator |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, RoHS, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 100% Rated, True RMS Sensing |
Product FAQs
8 answersWhat does the 'C' in the PJA36080CU33A catalog number signify?
The 'C' indicates that this breaker is 100% rated. This allows the breaker to carry its full 800A capacity continuously in an appropriately sized enclosure, rather than being limited to the standard 80% continuous current derating.
Which trip unit is installed in the PJA36080CU33A?
This breaker is equipped with a Micrologic 5.0 electronic trip unit, denoted by the 'U33A' suffix. It provides adjustable Long-Time, Short-Time, and Instantaneous (LSI) protection.
How is the PJA36080CU33A mounted in a panelboard?
It features an I-Line plug-on connection for the line side, allowing it to snap directly onto the bus of Square D I-Line panelboards and switchboards. The load side uses mechanical lugs for wire termination.
What conductor sizes are compatible with the load lugs on this breaker?
The standard load-side lugs accept three 3/0 AWG to 500 kcmil aluminum or copper wires per phase.
Can I upgrade the trip unit on this PowerPacT P-Frame breaker?
Yes, the Micrologic trip units on PowerPacT P-Frame breakers are field-interchangeable. You can swap the standard Micrologic 5.0 unit for an advanced model if you need features like ground-fault protection or power metering later.
Does this breaker include zone-selective interlocking (ZSI)?
Yes, the included Micrologic 5.0 trip unit features short-time zone-selective interlocking (ZSI). This allows the breaker to communicate with downstream breakers to isolate faults quickly while minimizing system-wide downtime.
Is this breaker branded as Square D or Schneider Electric?
PowerPacT P-Frame breakers may be labeled under either the Square D or Schneider Electric brand. Both brands represent the exact same equipment manufactured by Schneider Electric.
What standards does the PJA36080CU33A meet?
This PowerPacT P-Frame breaker is dual rated to meet both UL 489 and IEC 60947-2 standards for worldwide application.
