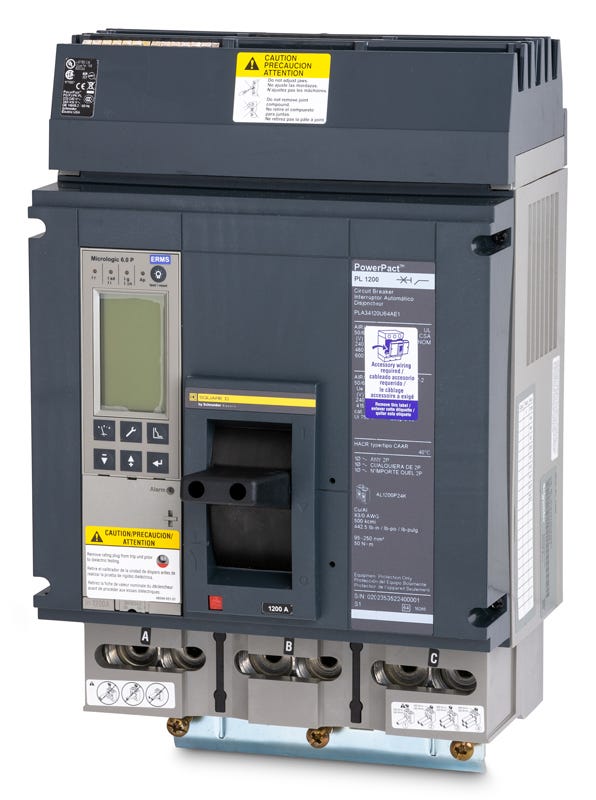

Square D PLA34120U64AE1 Molded Case Circuit Breaker
- 1200A
- 3 Pole
- I-Line
Quantity
Square D PLA34120U64AE1 - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for heavy-duty commercial and industrial applications, this 1200A P-Frame molded case circuit breaker delivers advanced power monitoring and Modbus communication capabilities. It installs into Square D I-Line panelboards and switchboards, utilizing a plug-on I-Line connection for efficient phase integration. Rated at 100 kAIC at 480VAC, it includes a highly configurable Micrologic 6.0P electronic trip unit providing long-time, short-time, instantaneous, and ground-fault protection.Specifications
| Brand | Square D |
|---|---|
| Series | PLA |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC |
| Amperage Range | 480-1200A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | (4) 3/0 AWG-500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroLogic 6.0P |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Micrologic 6.0P Trip Unit, Modbus Interface |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, True RMS Sensing, 80% Rated, Power Metering, Modbus Communication |
Product FAQs
6 answersHow does the PLA34120U64AE1 mount into a panelboard?
It utilizes an I-Line plug-on connection, which allows it to be installed directly onto the bus of compatible Square D I-Line panelboards and switchboards without the need for separate mounting hardware or cabled connections.
What do the U64A and E1 suffixes indicate in the PLA34120U64AE1 catalog number?
The U64A suffix designates the inclusion of a Micrologic 6.0P electronic trip unit with LSIG protection. The E1 suffix indicates that the breaker is equipped with Modbus communication capabilities for advanced power monitoring and network integration.
How adjustable is the trip unit on the PLA34120U64AE1?
The solid-state Micrologic electronic trip unit offers fully adjustable LSIG settings. This allows licensed electricians to precisely dial in the long-time, short-time, instantaneous, and ground-fault pickup and delay parameters to coordinate with other devices in the electrical system.
What are the wire size requirements for the lugs on this 1200A breaker?
The standard lugs on this P-Frame breaker accept four 3/0 AWG to 500 kcmil aluminum or copper conductors per phase.
Is external equipment required for ground-fault protection with this breaker?
No, the PLA34120U64AE1 features an integrated Micrologic electronic trip unit with built-in LSIG functions. This means equipment ground-fault protection is handled internally by the breaker without requiring a separate external ground-fault relay.
Is the PowerPacT P-Frame physically interchangeable with M-Frame breakers?
Yes, Square D PowerPacT P-Frame circuit breakers share the same dimensions, common mounting, bussing, cabling, and door cutouts as PowerPacT M-Frame breakers. However, when upgrading to a 1200A breaker like the PLA34120U64AE1, you must verify that your panelboard bus is rated for the increased amperage.
