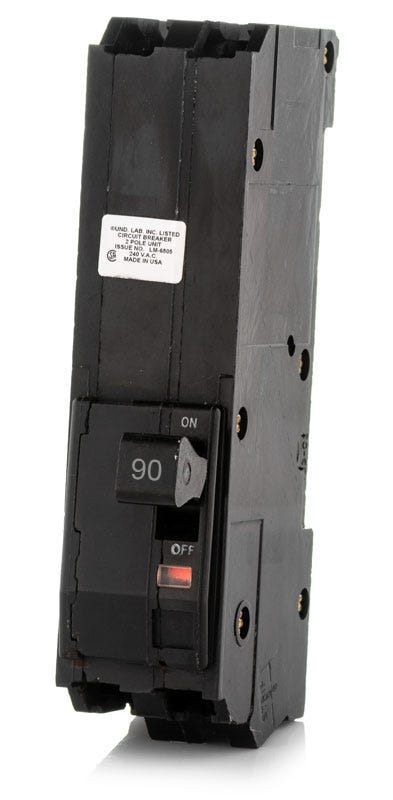

Square D Q1B290 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Square D
Q1B290
Molded Case Circuit Breaker
Brand
Square D
SKU
Q1B290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q1B290 - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Engineered to fit older NQOB panelboards, the Q1B290 is a 90A, 2-pole molded case circuit breaker. It utilizes reliable thermal-magnetic trip technology to deliver long-time and instantaneous protection for commercial electrical systems. The breaker installs via a sturdy bolt-on connection. When upgrading or replacing, a modern QOB290 breaker can be utilized if paired with the SK5668 horizontal bus bar mounting kit.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q1B290 |
| Series | Q1B |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q1B |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQOB Panelboards |
| Wire Gauge | #4-2/0 AWG |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Non-Interchangeable Trip |
Product FAQs
3 answersWhich panelboards are compatible with the Square D Q1B290?
This legacy breaker is engineered specifically to fit older Square D NQO and NQOB panelboards.
Is the Square D Q1B290 circuit breaker obsolete?
Yes, the Q1B series is a legacy molded case circuit breaker and is no longer actively manufactured by Square D.
What is the modern replacement for a Q1B290 breaker?
The modern equivalent is the Square D QOB290. However, to install a QOB breaker in an older NQOB panelboard, you must use an SK5668 mounting assembly kit to adapt the bus bar connections.
