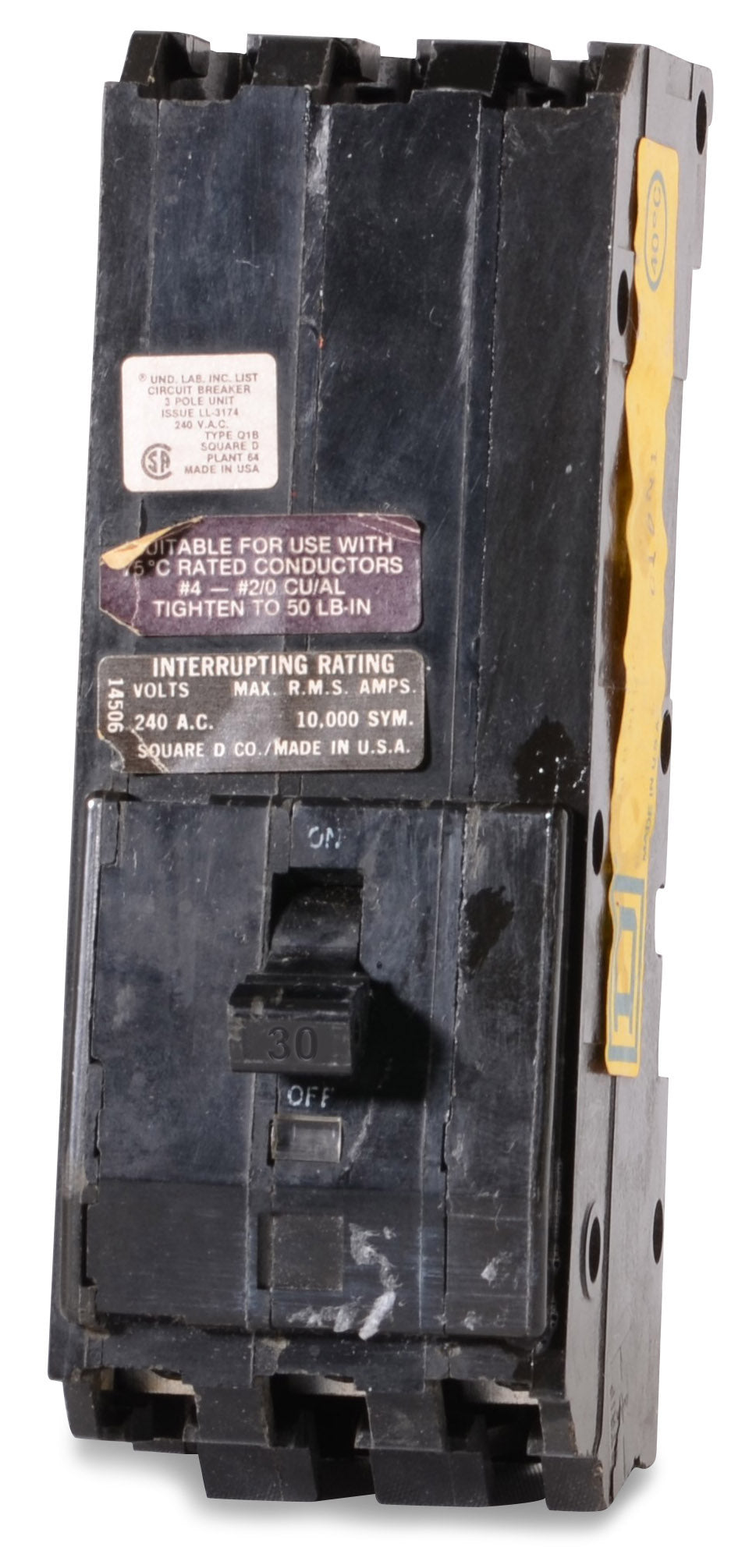

Square D Q1B330 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Square D
Q1B330
Molded Case Circuit Breaker
Brand
Square D
SKU
Q1B330
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q1B330 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
90A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Square D Q1B330 provides 30A of thermal-magnetic protection. This 3-pole breaker features a 10kAIC rating at 240VAC and includes a Visi-Trip indicator for rapid fault identification. Mounting securely via bolt-on connections, this unit installs into legacy Square D NQOB panelboards. Modern replacements require a QOB330 breaker and an SK5668 mounting kit, making this exact-match breaker ideal for a seamless swap. It is HACR rated for HVAC systems.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q1B330 |
| Series | Q1B |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q1B |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQOB Panelboards |
| Wire Gauge | #14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat is the modern replacement for the obsolete Q1B330 breaker?
The direct replacement is a 30-amp, 3-pole QOB circuit breaker. Because the Q1B series is obsolete, installing a newer QOB breaker into a legacy NQOB panelboard requires an SK5668 mounting assembly to adapt the bus connections.
How does the SK5668 mounting kit work when upgrading from a Q1B330?
The SK5668 horizontal bus bar kit provides the A, B, and C phase connectors and screws needed to mount a modern QOB breaker in an older NQOB interior. In a 225A panel, this kit adds enough mounting space for up to six poles.
Will the Q1B330 bolt directly into an NQOB panelboard?
Yes. If you are installing an original Q1B330, it bolts directly to the bus of legacy Square D NQO and NQOB panelboards without requiring any retrofit adapters or conversion kits.
Can the Q1B330 be installed in a 480V panel?
No. The Q1B frame is rated for a maximum of 240VAC. Applying this breaker in a 480V or 277/480V system exceeds its interrupting capacity and creates a significant safety hazard.
Are the thermal and magnetic trip elements adjustable on this breaker?
No. The Q1B330 utilizes a fixed thermal-magnetic trip unit. The long-time delay for overloads and the instantaneous pickup for short circuits are factory calibrated and cannot be modified.
What wire sizes are compatible with the Q1B330 box lugs?
The terminals accept copper or aluminum wire from 14 AWG to 8 AWG. Installers must ensure the selected conductor is properly rated for a 30-amp load according to NEC guidelines.
