Square D Q1B360 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Quantity

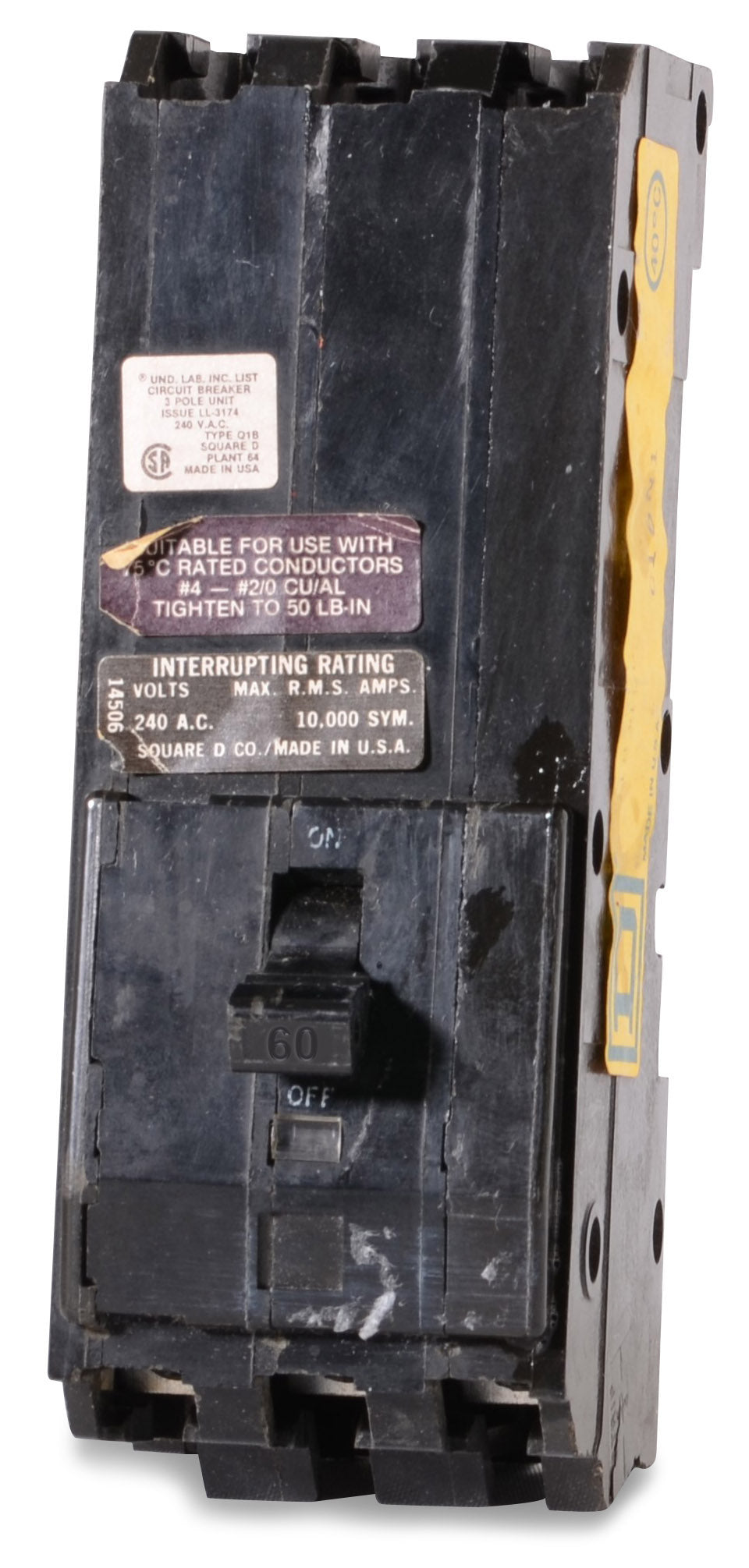

Square D Q1B360 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for commercial and industrial applications, the Q1B360 is a 3-pole, 60A molded case circuit breaker from Square D. It provides dependable thermal-magnetic protection for electrical systems requiring a 240VAC rating. This bolt-on breaker mounts into Square D NQOB panelboards. For modern upgrades, it can be replaced by the QOB360 when paired with an SK5668 mounting kit. Featuring a 10kAIC interrupting capacity, it includes standard long-time and instantaneous trip functions.Specifications
| Brand | Square D |
|---|---|
| Series | Q1B |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q1B |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQOB Panelboards |
| Wire Gauge | #8-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
4 answersWhat is the modern replacement for the obsolete Q1B360 breaker?
The Q1B series has been superseded by the Square D QOB series. To replace a Q1B360 with a modern QOB360 in an existing NQO or NQOB panelboard, you must use an SK5668 mounting assembly kit to adapt the new breaker to the older bus structure.
Which panelboards are designed to accept the Q1B360?
This breaker is engineered specifically for legacy Square D NQO and NQOB panelboards. It will not fit in standard QO load centers or newer NQ panelboards.
Is the Q1B360 suitable for use on 277/480V commercial systems?
No. The Q1B360 has a maximum voltage rating of 240VAC. Applying this breaker to a 480V system exceeds its insulation and interrupting capabilities, creating a significant electrical hazard.
What type of wire conductors are compatible with the Q1B360 lugs?
The factory-installed box lugs are designed to accept either copper or aluminum wiring ranging from #8 to #2 AWG. Ensure all connections are properly torqued to manufacturer specifications to prevent overheating.
