Square D Q221150AC Molded Case Circuit Breaker
- 150A
- 2 Pole
- I-Line
Square D
Q221150AC
Molded Case Circuit Breaker
Brand
Square D
SKU
Q221150AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

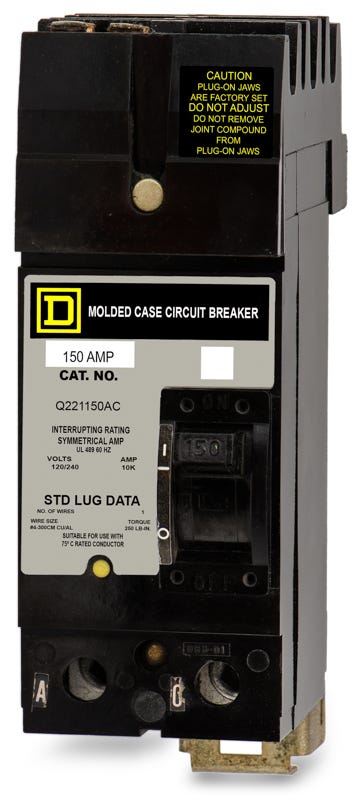

Square D Q221150AC - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built for robust commercial and industrial power distribution, this 150-amp thermal-magnetic breaker ensures dependable overcurrent protection. The unit fastens securely into Square D I-Line panelboards, specifically utilizing an A-C phase connection to help balance panel loads. Rated for 10kA fault current, it features the signature Visi-Trip flag for rapid fault identification and serves as a predecessor to the modern PowerPact QBA221502 series.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q221150AC-R |
| Series | Q2 |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q221 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase Connection A-C |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
7 answersIs the Square D Q221150AC circuit breaker still manufactured?
No, the Q2 series frame is obsolete and has been discontinued by Schneider Electric. It has been directly replaced by the modern PowerPact Q-Frame series. For a direct 150A, 2-pole I-Line replacement with an AC phase connection, the modern equivalent is catalog number QBA221502.
What does the AC suffix indicate on the Q221150AC catalog number?
The AC suffix specifies the phase connection for the I-Line plug-on mounting. It means this 2-pole breaker is configured to connect specifically to the A and C phases on the panelboard bus, which helps facility managers balance electrical loads across the panel.
Which panelboards are compatible with the Q221150AC circuit breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features the specialized I-Line plug-on mounting bracket and jaws, so it will not fit in standard NQ, NQOD, or Homeline load centers.
What is the purpose of the Visi-Trip indicator on this Q2 frame breaker?
The Visi-Trip indicator is a highly visible red flag that appears in the breaker window when it trips due to an overcurrent or short circuit. This allows electricians and maintenance personnel to quickly identify the tripped breaker in a crowded I-Line panelboard during troubleshooting.
Is the Q221150AC suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires specialized overcurrent protection for motor-driven closed-loop systems.
Does the Q221150AC require a separate mounting hardware kit?
No, the Q221150AC features an integrated I-Line mounting bracket and plug-on jaws. It is designed to snap directly onto the I-Line bus and secure with a retaining screw, requiring no additional mounting hardware kits.
Can the trip settings on the Q221150AC be adjusted?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short circuit trip thresholds are factory set and cannot be modified in the field.
SuperClub
Join free. Get 500 SuperPoints.
Earn points on eligible purchases and redeem them at checkout.
100 SuperPoints = $1 off.
Warranties
Add an extra year of protection
60-Day Warranty
Your purchase includes 60 days of SuperBreakers warranty coverage.
Add a 1-year warranty extension in your cart.
Get a Quote
Don’t see what you’re looking for?
We source obsolete and hard-to-find parts every day.
Shipping
Free Shipping Policy
Parcel shipments with item value over $99 qualify for free economy shipping within the continental US. Please call to confirm special handling instructions. We do not charge a handling fee or require a minimum amount on any order. SuperBreakers does not ship on customer accounts.
Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances SuperBreakers may reserve up to 5 business days to consolidate orders for complete shipment.
Expedited Shipments
Orders being shipped via Next Day Air, 2 Day Shipping or 3 Day Shipping must be received by 3 PM EST to guarantee same-day shipments. Expedited orders only ship on normal business days. Shipments will NOT be sent out on Saturdays and Sundays.
International Shipping
All International orders require a $1,000 minimum order threshold. Due to the special nature of these shipments, we require that these be placed with a SuperBreakers representative. Additional shipping and instructions will apply. All International Orders are Non-Cancel and Non-Refundable.
Reviews
Review summary
Customers rate this product 5.0 out of 5 based on 8 reviews.
Total 5 star reviews: 8 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
Search
Rating
8 reviews
- MEMichael E.Verified BuyerReviewingSquare D Q221150AC - 150A 2 Pole Molded Case Circuit BreakerI recommend this productRated 5 out of 5 stars4/28/26breaker purchase
delivered on time and quality was as advertised

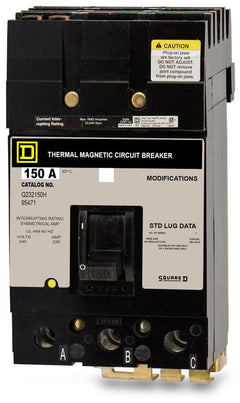

- MWmakalita w.Verified BuyerReviewingSquare D Q232150 - 150A 3 Pole Molded Case Circuit BreakerI recommend this productRated 5 out of 5 stars3/18/26Prompt service.
