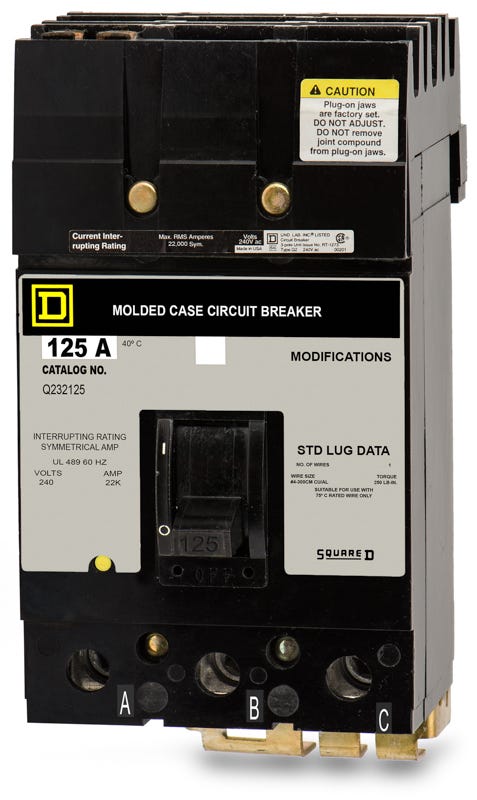

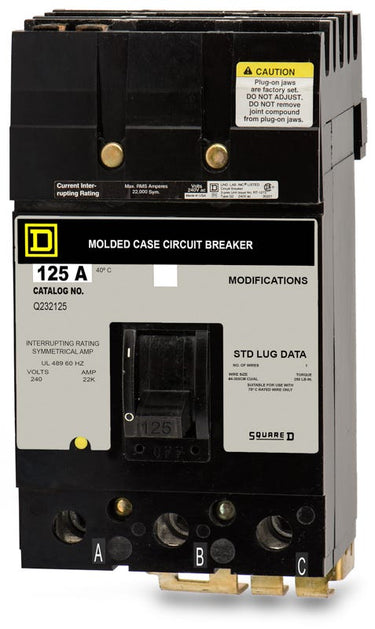

Square D Q232125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- I-Line
Square D
Q232125
Molded Case Circuit Breaker
Brand
Square D
SKU
Q232125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q232125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built to handle demanding industrial loads, this 125A thermal-magnetic breaker provides essential long-time and instantaneous overcurrent defense. The Q-Frame design accommodates 4 AWG to 300 kcmil wiring for versatile commercial deployments. This component installs into Square D I-Line panelboards using standard plug-on jaw connections. Facility managers often utilize it to maintain existing infrastructure, with the QBA32125 serving as its modern substitute. It features a visual trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q232125-R |
| Series | Q2 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q232 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
7 answersWhich panelboards are compatible with the Square D Q232125?
This breaker is designed specifically for Square D I-Line panelboards and switchboards. It uses an I-Line style plug-on connection and will not fit in standard unit-mount enclosures or load centers.
Is the Q232125 obsolete, and what is the current replacement?
Yes, the legacy Q2 series has been superseded by the PowerPact Q-Frame series. The direct modern replacement is the QBA32125, which shares the same 10kAIC rating. The QDA32125 is also a compatible substitute if a higher 25kAIC rating is needed.
Does the legacy Q2 frame share the same footprint as modern PowerPact breakers?
Yes. The Q232125 has the same physical dimensions and I-Line mounting configuration as the current PowerPact Q-Frame series. This allows for a direct drop-in replacement within existing panelboards without modifying the bus structure.
What wire sizes are accepted by the terminals on the Q232125?
The factory lugs accept wire gauges from 4 AWG up to 300 kcmil. The terminals are rated for use with both copper and aluminum (Al/Cu) conductors.
What type of trip unit is installed in the Q232125?
It features a fixed thermal-magnetic trip unit. This provides standard long-time and instantaneous (LI) trip functions for reliable overload and short-circuit protection.
Can the Q232125 be installed in a QO or Homeline residential load center?
No. This is a Q-Frame molded case circuit breaker with an I-Line plug-in mounting style. It is strictly for commercial and industrial I-Line panelboards and is not compatible with residential QO or Homeline enclosures.
Does the Q232125 provide equipment ground fault protection (EGFP)?
No. This breaker is equipped with a standard thermal-magnetic trip unit for overcurrent and short-circuit protection only. It does not offer ground fault or arc fault protection capabilities.
