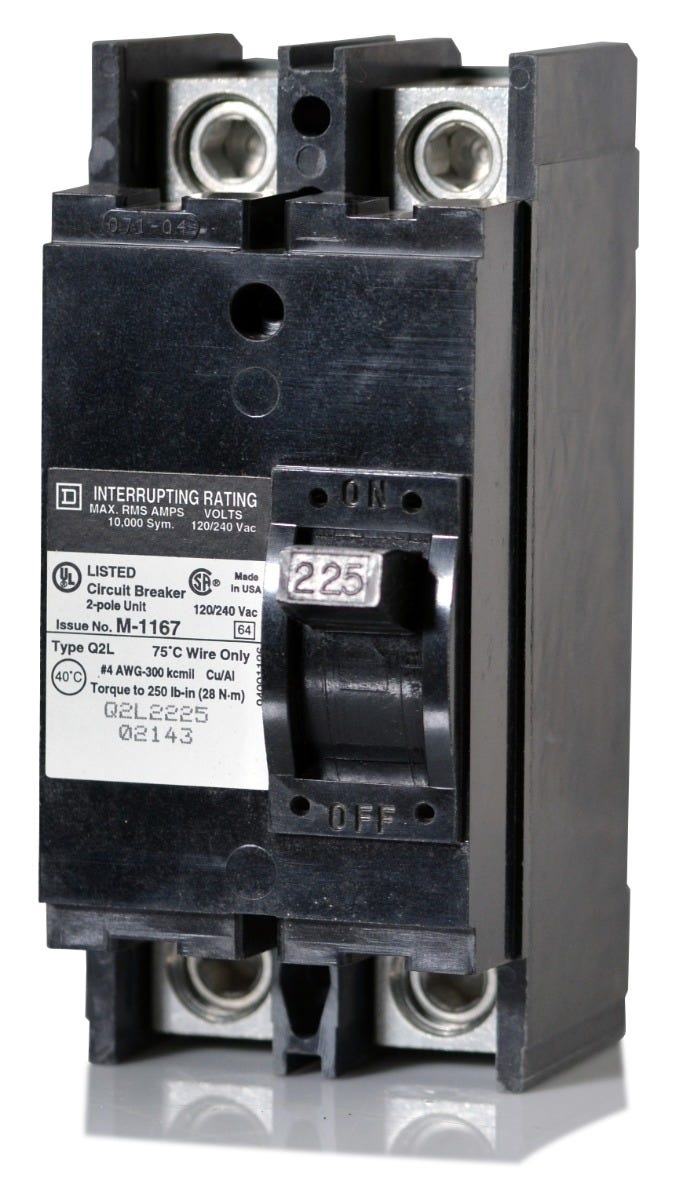

Square D Q2L2225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Unit Mount
Square D
Q2L2225
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2L2225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D Q2L2225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D Q2L2225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | Q2L2225 |
| Series | Q2L |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line and Load Side) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break |
Quantity
Square D Q2L2225 - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | Q2L2225-R |
| Series | Q2L |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line and Load Side) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
The Q2L2225 is a unit-mount molded case circuit breaker designed by Square D for commercial applications. Operating at 120/240VAC, this 225A breaker provides essential long-time and instantaneous protection. It installs into Square D individual enclosures, switchboards, and legacy NQOD panelboards. As a discontinued model, it is commonly replaced by the modern QBL22225 PowerPact breaker. Featuring a 10kAIC rating, it includes Visi-Trip technology for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2L2225 |
| Series | Q2L |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q2L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line and Load Side) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panels and enclosures are compatible with the Q2L2225?
This unit-mount breaker installs into Square D individual enclosures, switchboards, and legacy NQOD panelboards.
What is the modern replacement for the discontinued Q2L2225?
The Q2L2225 is a legacy Q-Frame breaker commonly replaced by the modern PowerPact QBL22225. However, installing the exact Q2L2225 preserves the original UL listing of legacy NQOD panels.
What wire sizes are accepted by the lugs on this breaker?
The included line and load side lugs accommodate 4 AWG to 300 kcmil aluminum or copper conductors.
What type of trip unit is equipped on the Q2L2225?
It features a non-interchangeable, fixed thermal-magnetic trip unit that provides LI (Long-Time and Instantaneous) protection against overloads and short circuits.
Does the Q2L2225 have a visual trip indicator?
Yes, this breaker includes a Visi-Trip indicator for quick visual identification of a tripped condition, allowing for faster fault resolution.
Is the Q2L2225 suitable for HVAC applications?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
